DLMSPM-24-01

Active

BRD SPT SNAP LOCK NYLON 1 1/2"

Active

BRD SPT SNAP LOCK NYLON 1 1/2"

Description

General part information

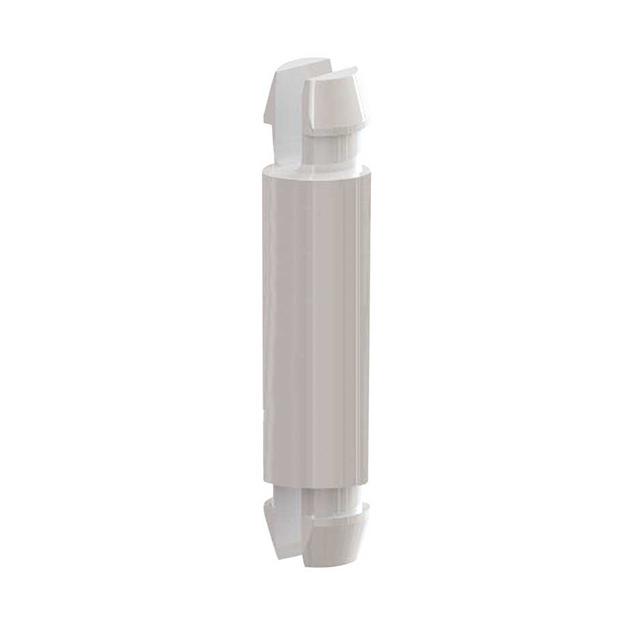

Board Support Snap Lock / Snap Lock Nylon 1.500" (38.10mm) 1 1/2"

Parameters and characteristics for this part

Specification	DLMSPM-24-01

Between Board Height	1.5 in
Holding Type	Snap Lock
Length - Overall	1.783 in
Material	Nylon
Mounting Hole Diameter	0.125 in
Mounting Panel Thickness	0.062 in
Mounting Type	Snap Lock
Support Hole Diameter	0.125 in
Support Hole Diameter (Alternate)	1/8"
Support Panel Thickness	0.062 in
Support Panel Thickness (Fraction)	1/16"

Part	Length - Overall	Mounting Hole Diameter	Mounting Panel Thickness	Holding Type	Support Panel Thickness	Support Panel Thickness (Fraction)	Support Hole Diameter	Support Hole Diameter (Alternate)	Mounting Type	Material	Between Board Height
Essentra Components DLMSPM-16-01	1.283 in	0.125 in	0.062 in	Snap Lock	0.062 in	1/16"	0.125 in	1/8"	Snap Lock	Nylon	1 in
Essentra Components DLMSPM-24-01	1.783 in	0.125 in	0.062 in	Snap Lock	0.062 in	1/16"	0.125 in	1/8"	Snap Lock	Nylon	1.5 in
Essentra Components DLMSP-8-01	0.783 in	0.152 in	0.062 in	Snap Lock	0.062 in	1/16"	0.152 in		Snap Lock	Nylon	0.5 in
Essentra Components DLMSP-7-01	0.72 in	0.152 in	0.062 in	Snap Lock	0.062 in	1/16"	0.152 in		Snap Lock	Nylon	0.438 in
Essentra Components DLMSPM-8-01	0.783 in	0.125 in	0.062 in	Snap Lock	0.062 in	1/16"	0.125 in	1/8"	Snap Lock	Nylon	0.5 in
Essentra Components DLMSPM-4-01	0.535 in	0.125 in	0.062 in	Snap Lock	0.062 in	1/16"	0.125 in	1/8"	Snap Lock	Nylon	0.25 in
Essentra Components DLMSP-3-01	0.472 in	0.152 in	0.062 in	Snap Lock	0.062 in	1/16"	0.152 in		Snap Lock	Nylon	0.188 in
Essentra Components DLMSP-16-01	1.283 in	0.152 in	0.062 in	Snap Lock	0.062 in	1/16"	0.152 in		Snap Lock	Nylon	1 in
Essentra Components DLMSPM-18-01	1.409 in	0.125 in	0.062 in	Snap Lock	0.062 in	1/16"	0.125 in	1/8"	Snap Lock	Nylon	1.125 in
Essentra Components DLMSPM-12-01	1.035 in	0.125 in	0.062 in	Snap Lock	0.062 in	1/16"	0.125 in	1/8"	Snap Lock	Nylon	0.75 in
