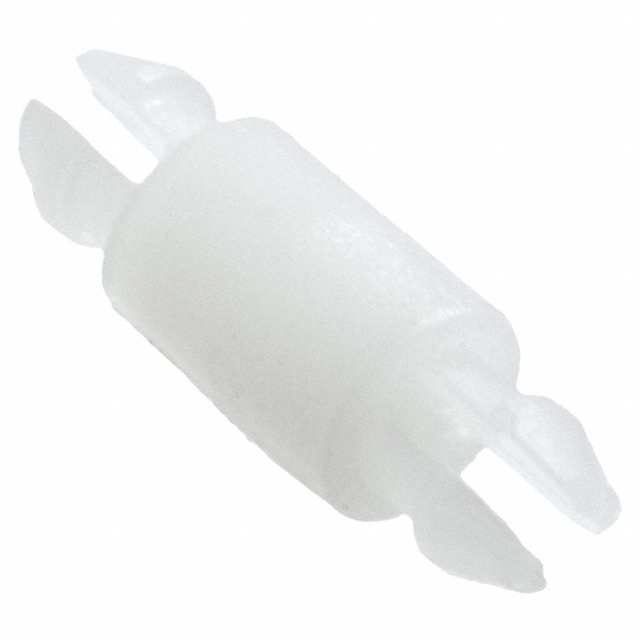

DLMSPM-4-01

Active

Essentra Access Solutions

PCB MINI SUPPORT POST 6.4MM HIGH, PK40

Deep-Dive with AI

Search across all available documentation for this part.

DLMSPM-4-01

Active

Essentra Access Solutions

PCB MINI SUPPORT POST 6.4MM HIGH, PK40

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DLMSPM-4-01

Between Board Height	6.35 mm
Between Board Height	0.25 in
Between Board Height	0.25 in
Holding Type	Snap Lock
Length - Overall [x]	0.535 in
Length - Overall [x]	13.6 mm
Material	Nylon
Mounting Hole Diameter	0.125 in
Mounting Hole Diameter	0.125 in
Mounting Hole Diameter	3.18 mm
Mounting Panel Thickness	0.062 in
Mounting Panel Thickness	0.0625 in
Mounting Panel Thickness	1.57 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.125 in
Support Hole Diameter [diameter]	0.125 in
Support Hole Diameter [diameter]	3.18 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

DLMSP Series

Part	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type	Between Board Height	Between Board Height	Between Board Height	Material	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Hole Diameter	Holding Type	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Length - Overall [x]	Between Board Height
Essentra Access Solutions DLMSPM-24-01	0.125 in	0.125 in	3.18 mm	45.3 mm	1.783 in	0.0625 "	0.062 "	1.57 mm	Snap Lock	1.5 in	38.1 mm		Nylon	0.125 in	0.125 in	3.18 mm	Snap Lock	0.062 in	0.0625 in	1.57 mm
Essentra Access Solutions DLMSP-8-01	0.152 in		3.86 mm			0.0625 "	0.062 "	1.57 mm	Snap Lock	0.5 in	12.7 mm	0.5 in	Nylon				Snap Lock	0.062 in	0.0625 in	1.57 mm
Essentra Access Solutions DLMSP-7-01	0.152 in		3.86 mm	0.72 in		0.0625 "	0.062 "	1.57 mm	Snap Lock	0.438 in	0.4375 in	11.13 mm	Nylon				Snap Lock	0.062 in	0.0625 in	1.57 mm	18.3 mm
Essentra Access Solutions DLMSPM-8-01	0.125 in	0.125 in	3.18 mm			0.0625 "	0.062 "	1.57 mm	Snap Lock	0.5 in	12.7 mm	0.5 in	Nylon	0.125 in	0.125 in	3.18 mm	Snap Lock	0.062 in	0.0625 in	1.57 mm
Essentra Access Solutions DLMSPM-4-01	0.125 in	0.125 in	3.18 mm	13.6 mm	0.535 in	0.0625 "	0.062 "	1.57 mm	Snap Lock	0.25 in	6.35 mm	0.25 in	Nylon	0.125 in	0.125 in	3.18 mm	Snap Lock	0.062 in	0.0625 in	1.57 mm
Essentra Access Solutions DLMSP-16-01	0.152 in		3.86 mm	32.6 mm	1.283 "	0.0625 "	0.062 "	1.57 mm	Snap Lock	1 in	25.4 mm		Nylon				Snap Lock	0.062 in	0.0625 in	1.57 mm
Essentra Access Solutions DLMSPM-18-01	0.125 in	0.125 in	3.18 mm	35.8 mm	1.409 "	0.0625 "	0.062 "	1.57 mm	Snap Lock	1.125 in	28.58 mm		Nylon	0.125 in	0.125 in	3.18 mm	Snap Lock	0.062 in	0.0625 in	1.57 mm		1 1/8
Essentra Access Solutions DLMSPM-12-01	0.125 in	0.125 in	3.18 mm	26.3 mm	1.035 in	0.0625 "	0.062 "	1.57 mm	Snap Lock	0.75 in	19.05 mm	0.75 in	Nylon	0.125 in	0.125 in	3.18 mm	Snap Lock	0.062 in	0.0625 in	1.57 mm
Essentra Access Solutions DLMSP-18-01	0.152 in		3.86 mm	35.8 mm	1.409 "	0.0625 "	0.062 "	1.57 mm	Snap Lock	1.125 in	28.58 mm		Nylon				Snap Lock	0.062 in	0.0625 in	1.57 mm		1 1/8
Essentra Access Solutions DLMSP-4-01	0.152 in		3.86 mm	13.6 mm	0.535 in	0.0625 "	0.062 "	1.57 mm	Snap Lock	0.25 in	6.35 mm	0.25 in	Nylon				Snap Lock	0.062 in	0.0625 in	1.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.28
		5	$ 0.24
		10	$ 0.20
		25	$ 0.19
		50	$ 0.18
		100	$ 0.16
		250	$ 0.15
		500	$ 0.14
		1000	$ 0.14
Newark	Pack of 40	1	$ 7.20
		10	$ 6.84
		25	$ 6.46
		50	$ 6.05
		100	$ 5.80
		250	$ 5.27

Description

General part information

DLMSP Series

Board Support Snap Lock / Snap Lock Nylon 0.250" (6.35mm) 1/4"

Documents

Technical documentation and resources

No documents available
