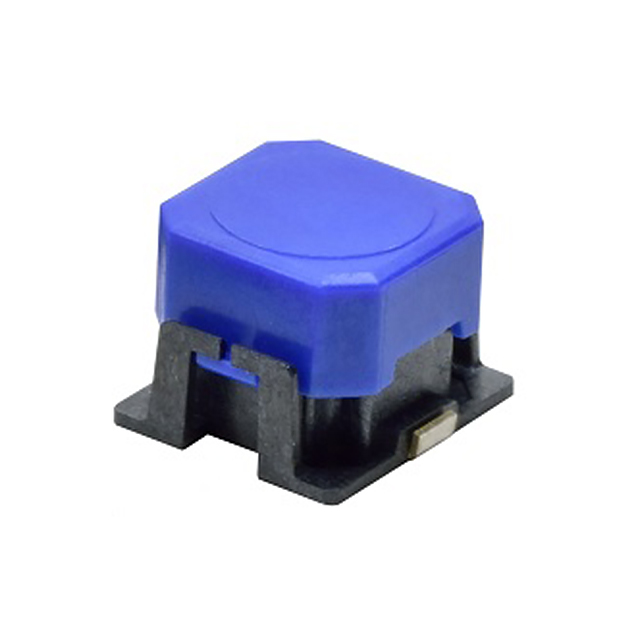

B3AL-1004P - B3AL-1004P

B3AL-1004P

Active
Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 16V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetHow to Read Date Codes+2
B3AL-1004P - B3AL-1004P

B3AL-1004P

Active
Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 16V

Deep-Dive with AI

DocumentsDatasheetHow to Read Date Codes+2

Technical Specifications

Parameters and characteristics for this part

SpecificationB3AL-1004P
Actuator Height off PCB, Vertical5 mm
Actuator OrientationTop Actuated
Actuator TypeSquare Button
CircuitSPST-NO
Contact Rating @ Voltage0.05 A, 16 VDC
IlluminationNon-Illuminated
Mechanical Life500000 Cycles
Mounting TypeSurface Mount
Operating Force510 gf
Operating Temperature [Max]90 °C
Operating Temperature [Min]-40 °C
Outline [x]6.9 mm
Outline [y]6 mm
Switch FunctionOff-Mom
Switch Travel1.3 mm
Termination StyleSMD (SMT) Tab

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.30
10$ 2.23
25$ 2.03
100$ 1.77
250$ 1.60
500$ 1.49
Digi-Reel® 1$ 2.30
10$ 2.23
25$ 2.03
100$ 1.77
250$ 1.60
500$ 1.49
Tape & Reel (TR) 1400$ 1.38
2800$ 1.25
7000$ 1.16

Description

General part information

B3AL Series

Tactile Switch SPST-NO Top Actuated Surface Mount
