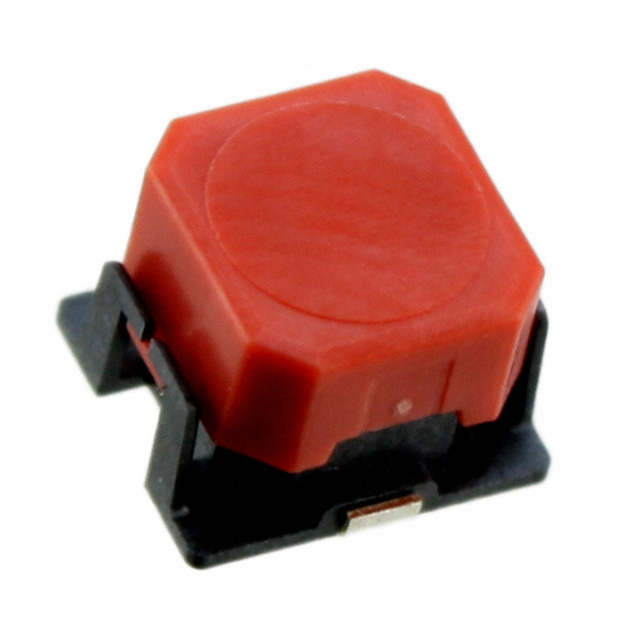

B3AL-1000P
ActiveOmron Electronics Inc-EMC Div
SWITCH TACTILE SPST-NO 0.05A 16V
Deep-Dive with AI
Search across all available documentation for this part.
B3AL-1000P
ActiveOmron Electronics Inc-EMC Div
SWITCH TACTILE SPST-NO 0.05A 16V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B3AL-1000P |
|---|---|
| Actuator Height off PCB, Vertical | 5 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Square Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 16 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 200 gf |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6.9 mm |
| Outline [y] | 6 mm |
| Switch Function | Off-Mom |
| Switch Travel | 1.3 mm |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.62 | |
| 10 | $ 1.57 | |||
| 25 | $ 1.43 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.14 | |||
| Digi-Reel® | 1 | $ 1.62 | ||
| 10 | $ 1.57 | |||
| 25 | $ 1.43 | |||
| 100 | $ 1.24 | |||
| 250 | $ 1.14 | |||
| Tape & Reel (TR) | 1400 | $ 1.14 | ||
Description
General part information
B3AL Series
Tactile Switch SPST-NO Top Actuated Surface Mount
