MMC5633NJL

Active

Memsic Inc.

30 GAUSS, MONOLITHIC, HIGH PERFO

Search across all available documentation for this part.

Active

Memsic Inc.

30 GAUSS, MONOLITHIC, HIGH PERFO

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MMC5633NJL	MMC5633 Series

Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Bandwidth	1 kHz	1 kHz
Current - Supply (Max) [Max]	4 mA	4 mA
Features	Temperature Compensated	Temperature Compensated
Interface	-	I2C, I3C
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I3C, I2C	I3C, I2C
Package / Case	WLBGA, 4-WFBGA	WLBGA, 4-WFBGA
Resolution	20 b	20 b
Sensing Range	3 mT	3 mT
Sensor Type	-	Magnetic, AMR (Anisotropic Magnetoresistive)
Supplied Contents	-	Board(s)
Supplier Device Package	4-WLP	4-WLP
Supplier Device Package [x]	0.85	0.85
Supplier Device Package [y]	0.85	0.85
Technology	Magnetoresistive	Magnetoresistive
Utilized IC / Part	-	MMC5633
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.62 V	1.62 V

EVAL BOARD FOR MMC5633

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Utilized IC / Part	Sensing Range	Sensor Type	Supplied Contents	Features	Current - Supply (Max) [Max]	Resolution	Package / Case	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Technology	Bandwidth	Axis [z]	Axis [y]	Axis [x]
Memsic Inc. MMC5633NJL-B	3.6 V	1.62 V	I2C, I3C	MMC5633	3 mT	Magnetic, AMR (Anisotropic Magnetoresistive)	Board(s)
Memsic Inc. MMC5633NJL	3.6 V	1.62 V			3 mT			Temperature Compensated	4 mA	20 b	4-WFBGA, WLBGA	4-WLP	0.85	0.85	Surface Mount	85 °C	-40 °C	I2C, I3C	Magnetoresistive	1 kHz	Z	Y	X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

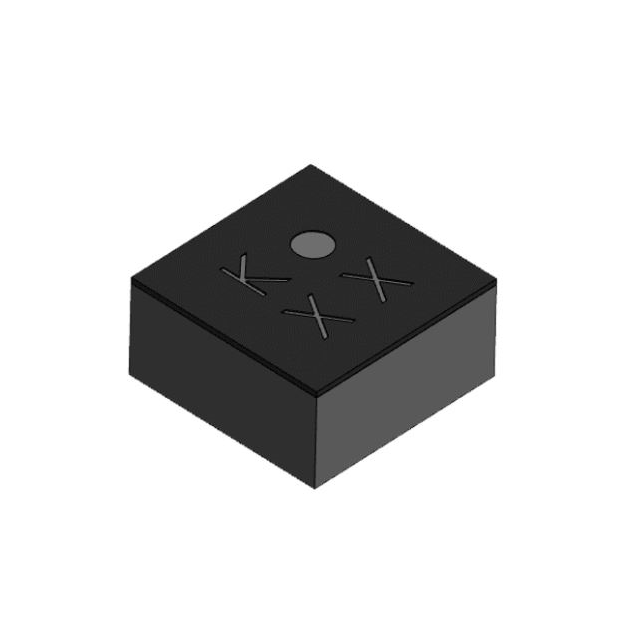

Magnetoresistive Sensor X, Y, Z Axis 4-WLP (0.85x0.85)
