MMC5633NJL-B

Active

Memsic Inc.

EVAL BOARD FOR MMC5633

Search across all available documentation for this part.

Active

Memsic Inc.

EVAL BOARD FOR MMC5633

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MMC5633NJL-B	MMC5633 Series

Axis	-	Z
Axis	-	Y
Axis	-	X
Bandwidth	-	1 kHz
Current - Supply (Max)	-	4 mA
Features	-	Temperature Compensated
Interface	I2C, I3C	I2C, I3C
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I3C, I2C
Package / Case	-	WLBGA, 4-WFBGA
Resolution	-	20 b
Sensing Range	3 mT	3 mT
Sensor Type	Magnetic, AMR (Anisotropic Magnetoresistive)	Magnetic, AMR (Anisotropic Magnetoresistive)
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	4-WLP
Supplier Device Package	-	0.85
Supplier Device Package	-	0.85
Technology	-	Magnetoresistive
Utilized IC / Part	MMC5633	MMC5633
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.62 V	1.62 V

EVAL BOARD FOR MMC5633

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Utilized IC / Part	Sensing Range	Sensor Type	Supplied Contents	Features	Current - Supply (Max) [Max]	Resolution	Package / Case	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Technology	Bandwidth	Axis [z]	Axis [y]	Axis [x]
Memsic Inc. MMC5633NJL-B	3.6 V	1.62 V	I2C, I3C	MMC5633	3 mT	Magnetic, AMR (Anisotropic Magnetoresistive)	Board(s)
Memsic Inc. MMC5633NJL	3.6 V	1.62 V			3 mT			Temperature Compensated	4 mA	20 b	4-WFBGA, WLBGA	4-WLP	0.85	0.85	Surface Mount	85 °C	-40 °C	I2C, I3C	Magnetoresistive	1 kHz	Z	Y	X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.10

General part information

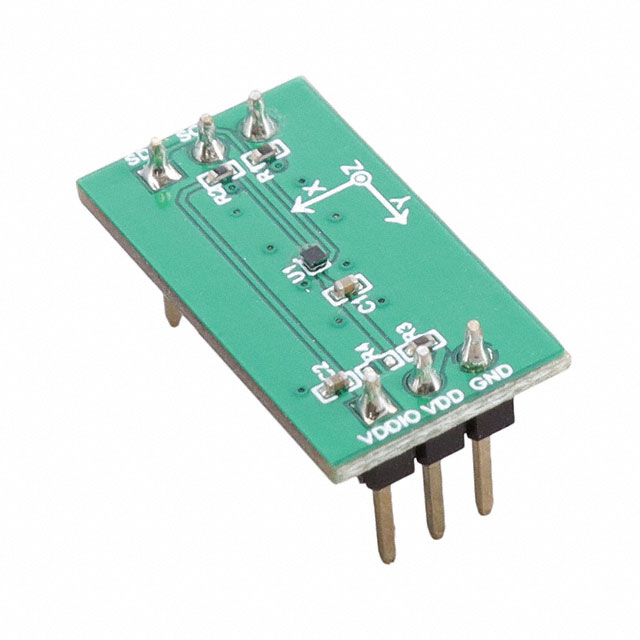

MMC5633 - Magnetic, AMR (Anisotropic Magnetoresistive) Sensor Evaluation Board
