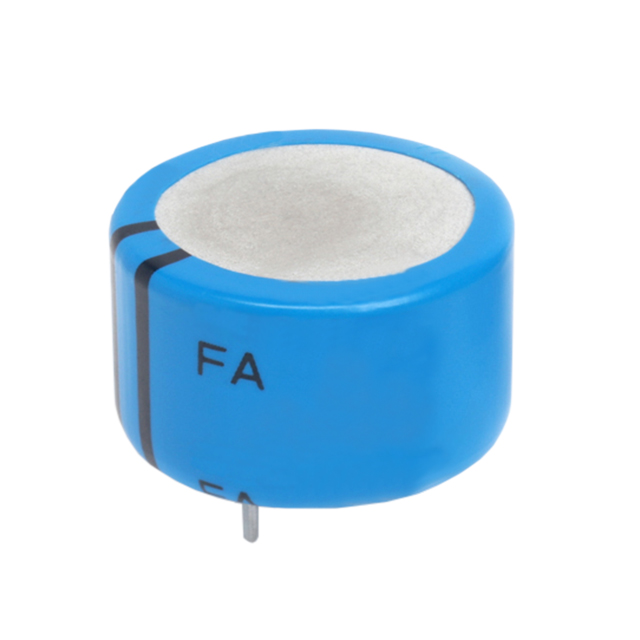

FA0H105ZF

Active

KEMET

CAP 1F -20% +80% 5.5V T/H

Search across all available documentation for this part.

Active

KEMET

CAP 1F -20% +80% 5.5V T/H

Technical Specifications

Parameters and characteristics for this part

Specification	FA0H105ZF

Capacitance	1 F
ESR (Equivalent Series Resistance)	2.5 Ohm
Height - Seated (Max) [Max]	18.5 mm
Height - Seated (Max) [Max]	0.728 in
Lead Spacing	0.787 in
Lead Spacing	20 mm
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	44.5 mm
Size / Dimension [diameter]	1.752 in
Termination	PC Pins
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	5.5 V

Part	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance [Max]	Tolerance [Min]	Lead Spacing	Lead Spacing	Package / Case	Termination	Voltage - Rated	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET FA0H474ZF	470 mF	1.437 in	36.5 mm	16.5 mm	16.51 mm	3.5 Ohm	70 °C	-25 °C	Through Hole	80 %	-20 %	15 mm	0.591 in	Radial Can	PC Pins	5.5 V
KEMET FA0H473ZF	47 mF	0.63 in	16 mm			20 Ohm	70 °C	-25 °C	Through Hole	80 %	-20 %	5.1 mm	0.201 in	Radial Can	PC Pins	5.5 V	15.5 mm	0.61 "
KEMET FA0H104ZF	0.1 F	0.846 "	21.5 mm			8 Ohm	70 °C	-25 °C	Through Hole	80 %	-20 %	7.6 mm	0.299 in	Radial Can	PC Pins	5.5 V	15.5 mm	0.61 "
KEMET FA0H105ZF	1 F	1.752 in	44.5 mm			2.5 Ohm	70 °C	-25 °C	Through Hole	80 %	-20 %	20 mm	0.787 in	Radial Can	PC Pins	5.5 V		0.728 in	18.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 F (EDLC) Supercapacitor 5.5 V Radial, Can 2.5Ohm @ 1kHz
