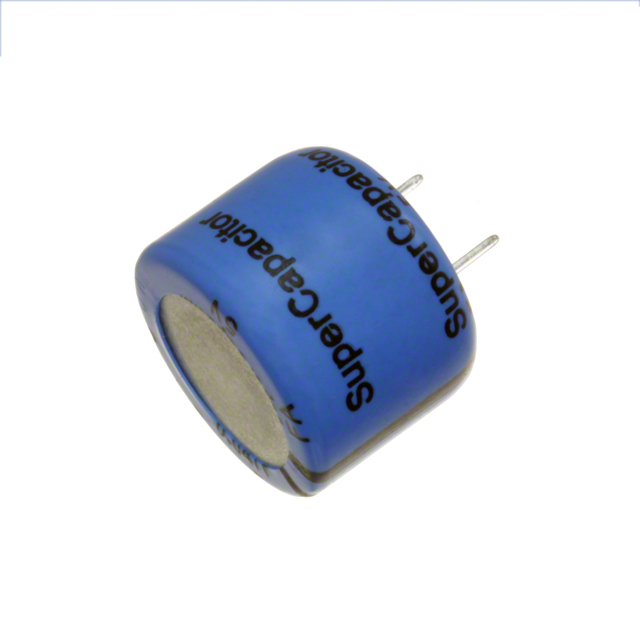

FA0H473ZF

Active

KEMET

CAP, 47000ΜF, 5.5V, SUPER CAP, RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP, 47000ΜF, 5.5V, SUPER CAP, RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	FA0H473ZF

Capacitance	47 mF
ESR (Equivalent Series Resistance)	20 Ohm
Height - Seated (Max)	15.5 mm
Height - Seated (Max) [Max]	0.61 "
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Termination	PC Pins
Tolerance [Max]	80 %
Tolerance [Min]	-20 %
Voltage - Rated	5.5 V

Part	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance [Max]	Tolerance [Min]	Lead Spacing	Lead Spacing	Package / Case	Termination	Voltage - Rated	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET FA0H474ZF	470 mF	1.437 in	36.5 mm	16.5 mm	16.51 mm	3.5 Ohm	70 °C	-25 °C	Through Hole	80 %	-20 %	15 mm	0.591 in	Radial Can	PC Pins	5.5 V
KEMET FA0H473ZF	47 mF	0.63 in	16 mm			20 Ohm	70 °C	-25 °C	Through Hole	80 %	-20 %	5.1 mm	0.201 in	Radial Can	PC Pins	5.5 V	15.5 mm	0.61 "
KEMET FA0H104ZF	0.1 F	0.846 "	21.5 mm			8 Ohm	70 °C	-25 °C	Through Hole	80 %	-20 %	7.6 mm	0.299 in	Radial Can	PC Pins	5.5 V	15.5 mm	0.61 "
KEMET FA0H105ZF	1 F	1.752 in	44.5 mm			2.5 Ohm	70 °C	-25 °C	Through Hole	80 %	-20 %	20 mm	0.787 in	Radial Can	PC Pins	5.5 V		0.728 in	18.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 mF (EDLC) Supercapacitor 5.5 V Radial, Can 20Ohm @ 1kHz
