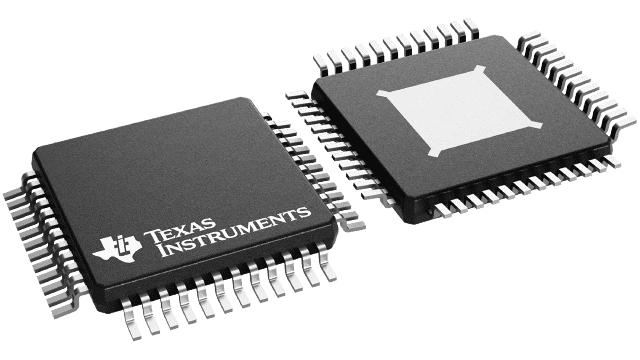

F2800156QPHPQ1
ActiveAUTOMOTIVE C2000™ 32-BIT MCU 100-MHZ 256-KB FLASH WITH CAN-FD, LOCKSTEP ASIL B, GRADE 0 AND 1
Deep-Dive with AI
Search across all available documentation for this part.
F2800156QPHPQ1
ActiveAUTOMOTIVE C2000™ 32-BIT MCU 100-MHZ 256-KB FLASH WITH CAN-FD, LOCKSTEP ASIL B, GRADE 0 AND 1
Deep-Dive with AI
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.71 | |
| 10 | $ 3.33 | |||
| 25 | $ 3.15 | |||
| 100 | $ 2.73 | |||
| Digi-Reel® | 1 | $ 3.71 | ||
| 10 | $ 3.33 | |||
| 25 | $ 3.15 | |||
| 100 | $ 2.73 | |||
| Tape & Reel (TR) | 250 | $ 2.59 | ||
| 500 | $ 2.32 | |||
| 1250 | $ 1.96 | |||
| 2500 | $ 1.86 | |||
| Texas Instruments | JEDEC TRAY (10+1) | 1 | $ 3.41 | |
| 100 | $ 2.81 | |||
| 250 | $ 2.02 | |||
| 1000 | $ 1.52 | |||
Description
General part information
TMS320F2800156-Q1 Series
The TMS320F280015x (F280015x) is a member of the cost-optimized C2000 real-time microcontroller family of scalable, ultra-low latency devices designed for efficiency in power electronics.
These include suchapplicationsas:
TMS320F280015x has dual 32-bit C28x CPUs in Lockstep, enabling the device to achieve ASIL B functional safety device rating without much SW overhead. Thereal-time control subsystemis based on TI’s 32-bit C28x DSP core, which provides 120MHz of signal-processing performance for floating- or fixed-point code running from either on-chip flash or SRAM. The C28x CPU is further boosted by theTrigonometric Math Unit (TMU)andVCRC (Cyclical Redundancy Check) extended instruction sets, speeding up common algorithms key to real-time control systems.
