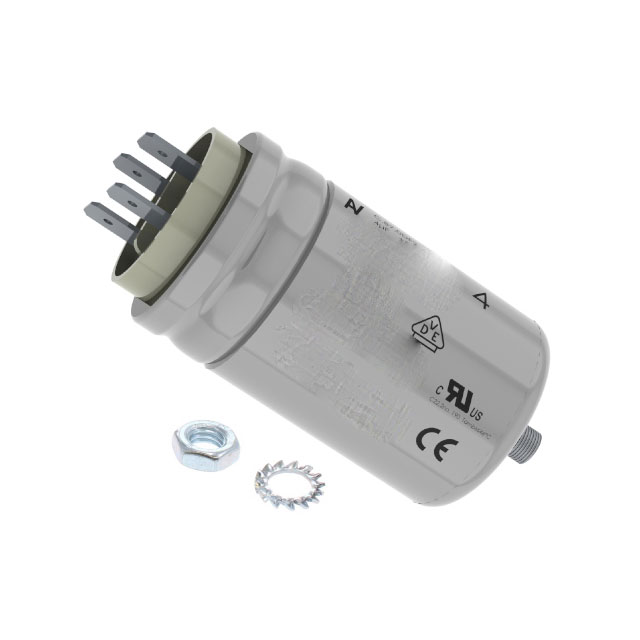

C878AF24400TF1J

Active

KEMET

CAP FILM 4UF 5% 470VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

C878AF24400TF1J

Active

KEMET

CAP FILM 4UF 5% 470VAC RADIAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C878AF24400TF1J

Applications	Motor Run
Capacitance	4 µF
Dielectric Material	Metallized, Polypropylene (PP)
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Termination	Disconnect, Quick Connect
Tolerance	5 %
Voltage Rating - AC	470 V

C878AF Series

Part	Applications	Mounting Type	Capacitance	Voltage Rating - AC	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Termination	Termination	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]
KEMET C878AF24800AA0J	Motor Run	Chassis Stud Mount	8 µF	470 V	0.394 in	10 mm	3.15 in	80 mm	Radial Can	0.25 in	6.3 mm	Quick Connect	-25 °C	85 °C	Metallized Polypropylene (PP)	5 %	30 mm	1.181 inches
KEMET C878AF24600AA1J	Motor Run	Chassis Stud Mount	6 µF	470 V	0.394 in	10 mm	3.15 in	80 mm	Radial Can	0.25 in	6.3 mm	Quick Connect	-25 °C	85 °C	Metallized Polypropylene (PP)	5 %	30 mm	1.181 inches
KEMET C878AF14400ZA4J	Motor Run	Chassis Stud Mount	4 µF	470 V					Radial Can			Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	Metallized Polypropylene (PP)	5 %
KEMET C878AF25100AA0J	Motor Run	Chassis Stud Mount	10 µF	470 V	0.394 in	10 mm	3.15 in	80 mm	Radial Can	0.25 in	6.3 mm	Quick Connect	-25 °C	85 °C	Metallized Polypropylene (PP)	5 %	35 mm	1.378 in
KEMET C878AF35120AA0J	Motor Run	Chassis Mount	12 µF	470 V	0.528 in	13.4 mm	3.15 in	80 mm	Radial Can			Disconnect Quick Connect	-25 °C	85 °C	Metallized Polypropylene (PP)	5 %	30 mm	1.181 inches
KEMET C878AF24400TF1J	Motor Run	Chassis Mount	4 µF	470 V	0.394 in	10 mm			Radial Can			Disconnect Quick Connect	-25 °C	85 °C	Metallized Polypropylene (PP)	5 %	35 mm	1.378 in
KEMET C878AF45160AA1J	Motor Run	Chassis Stud Mount	16 µF	470 V					Radial Can			Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	Metallized Polypropylene (PP)	5 %
KEMET C878AF34350AA4J	Motor Run	Chassis Stud Mount	3.5 µF	470 V	0.528 in	13.4 mm			Radial Can	0.25 in	6.3 mm	Quick Connect	-25 °C	85 °C	Metallized Polypropylene (PP)	5 %	35 mm	1.378 in
KEMET C878AF24500AA1J	Motor Run	Chassis Stud Mount	5 µF	470 V	0.394 in	10 mm	2.303 in	58.5 mm	Radial Can	0.25 in	6.3 mm	Quick Connect	-25 °C	85 °C	Metallized Polypropylene (PP)	5 %	25 mm	0.984 "
KEMET C878AF25120AA0J	Motor Run	Chassis Stud Mount	12 µF	470 V	0.394 in	10 mm	3.15 in	80 mm	Radial Can	0.25 in	6.3 mm	Quick Connect	-25 °C	85 °C	Metallized Polypropylene (PP)	5 %	35 mm	1.378 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 6.61
		10	$ 5.72
		50	$ 5.14
		115	$ 4.46
		575	$ 4.04
		1035	$ 3.74
		2530	$ 3.67

Description

General part information

C878AF Series

4 µF Film Capacitor 470V Polypropylene (PP), Metallized Radial, Can
