Technical Specifications
Parameters and characteristics for this part
| Specification | MTA106E |
|---|---|
| Actuator Length [x] | 10.49 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | SPDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 60000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 6.4 mm |
| Switch Function | On-Off-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
MTA106 Series
| Part | Current Rating (Amps) | Actuator Material | Actuator Length [x] | Illumination | Electrical Life | Actuator Type | Panel Cutout Dimensions [diameter] | Termination Style | Bushing Thread | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Features | Circuit | Voltage Rating - DC | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 4 A 6 A | Copper Alloy Chrome Plated | 10.49 mm | Non-Illuminated | 60000 Cycles | Standard Round | 6.4 mm | PC Pin | 1/4-40 | 125 V | -20 C | 80 C | Epoxy Sealed Terminals | SPDT | 28 V | On-Off-Mom |
TE Connectivity Raychem Cable Protection | 4 A 6 A | Brass Nickel Plated | 10.49 mm | Non-Illuminated | 60000 Cycles | Standard Round | 6.4 mm | Solder Lug | 1/4-40 | 125 V | -20 C | 80 C | Epoxy Sealed Terminals | SPDT | 28 V | Mom-Off-Mom |
TE Connectivity Raychem Cable Protection | 4 A 6 A | Brass Nickel Plated | 10.49 mm | Non-Illuminated | 60000 Cycles | Standard Round | 6.4 mm | Solder Lug | 1/4-40 | 125 V | -20 C | 80 C | Epoxy Sealed Terminals | SPDT | 28 V | On-Off-On |
TE Connectivity Raychem Cable Protection | 4 A 6 A | Copper Alloy Chrome Plated | 10.49 mm | Non-Illuminated | 80000 Cycles | Standard Round | 6.4 mm | Solder Lug | 1/4-40 | 125 V | -20 C | 80 C | Epoxy Sealed Terminals | SPDT | 28 V | On-On |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MTA106 Series

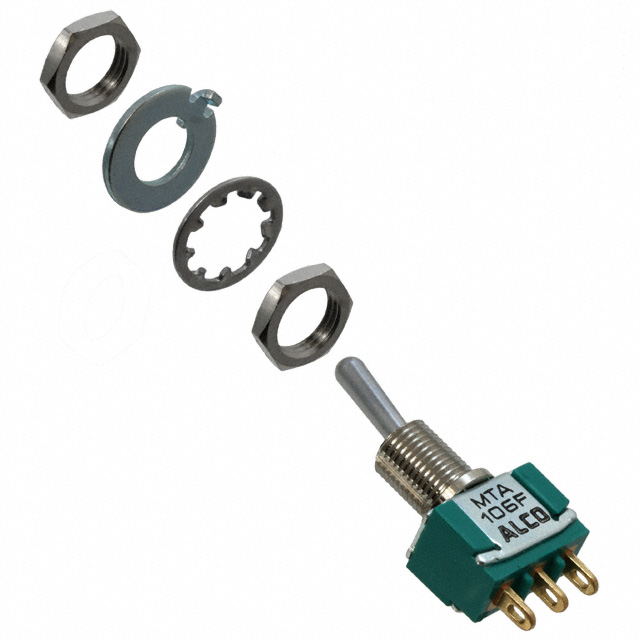

6 A Toggle Switch, Single Pole - Double Throw Configuration (Pole-Throw), On Off On, 3 Position, 28 VDC, 125 VAC, Panel Mount, Vertical, Baton Long
