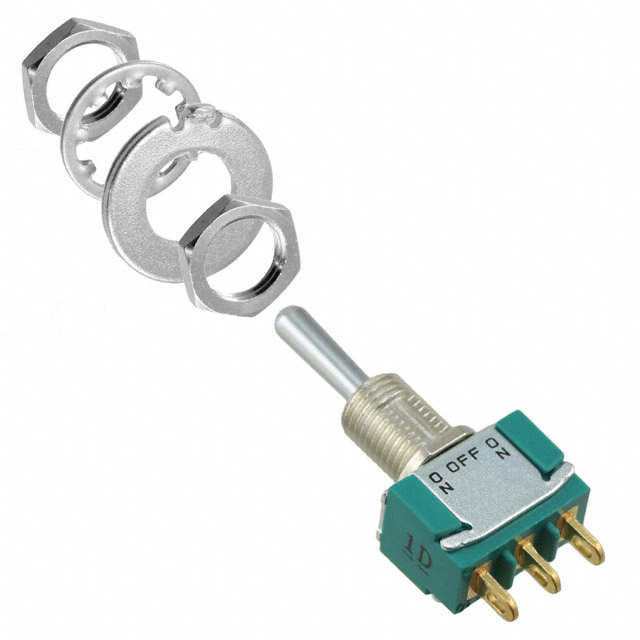

MTA106G
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTA106G
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTA106G |
|---|---|
| Actuator Length [x] | 10.49 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | SPDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 60000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 6.4 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.78 | |
| 10 | $ 11.46 | |||
| 25 | $ 11.08 | |||
Description
General part information
MTA106 Series
Toggle Switch SPDT Panel Mount
