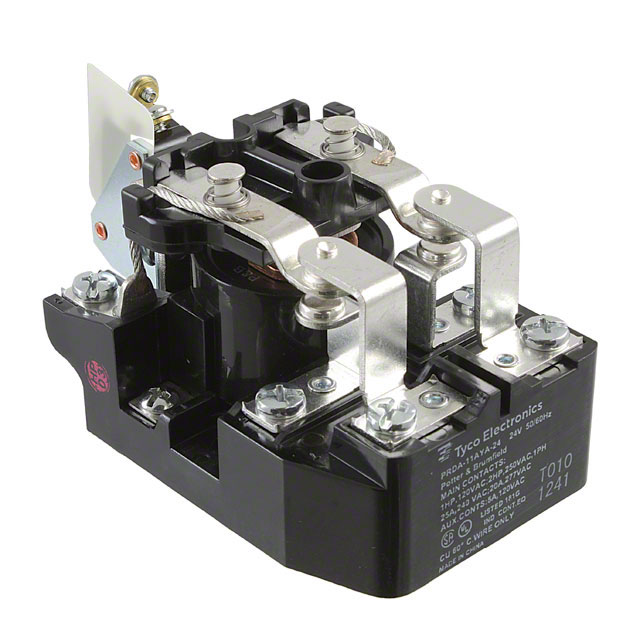

PRDA-11AYA-24
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 25A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRDA-11AYA-24
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 25A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRDA-11AYA-24 |
|---|---|
| Approval Agency | CSA, UL |
| Coil Current | 410 mA |
| Coil Insulation | Class B |
| Coil Resistance | 12 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 25 A |
| Mounting Type | Chassis Mount |
| Must Release Voltage | 2.4 VAC/DC |
| Operate Time | 40 ms |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 125 VDC, 600 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 106.92 | |
| 20 | $ 100.98 | |||
| 40 | $ 89.10 | |||
| 80 | $ 83.16 | |||
Description
General part information
PRDA-11AYA Series
General Purpose Relay DPDT (2 Form C) 24VAC Coil Chassis Mount
