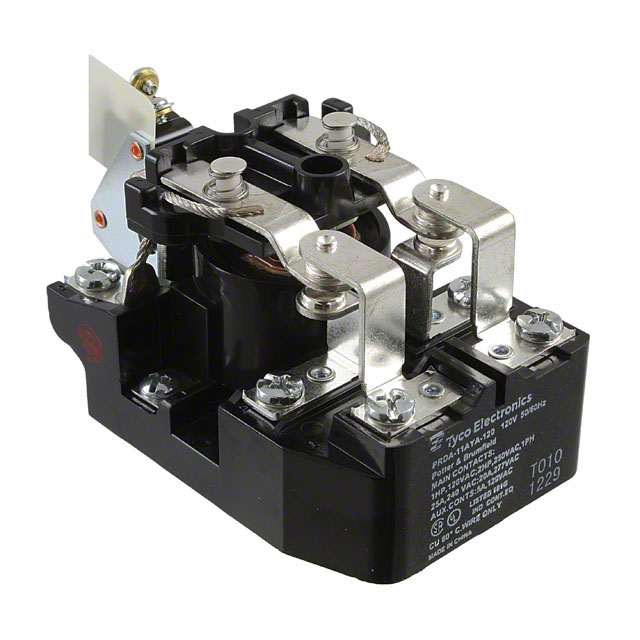

PRDA-11AYA-120

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 25A 120V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 25A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Insulation	Operate Time	Switching Voltage	Must Operate Voltage	Coil Type	Must Release Voltage	Mounting Type	Contact Form	Approval Agency	Contact Rating (Current)	Release Time	Coil Current	Relay Type	Termination Style	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Coil Voltage
TE Connectivity Potter & Brumfield Relays PRDA-11AYA-120	Class B	40 ms	125 VDC 600 VAC	102 VAC	Non Latching	12 VAC	Chassis Mount	DPDT (2 Form C)	CSA UL	25 A	20 ms	85 mA	General Purpose	Screw Terminal	Silver (Ag)	45 °C	-55 °C	290 Ohms	120 VAC
TE Connectivity Potter & Brumfield Relays PRDA-11AYA-240	Class B	40 ms	125 VDC 600 VAC	204 VAC	Non Latching	24 VAC	Chassis Mount	DPDT (2 Form C)	CSA UL	25 A	20 ms	43 mA	General Purpose	Screw Terminal	Silver (Ag)	45 °C	-55 °C	1.2 kOhms	240 VAC
TE Connectivity Potter & Brumfield Relays PRDA-11AYA-24	Class B	40 ms	125 VDC 600 VAC		Non Latching	2.4 VAC/DC	Chassis Mount	DPDT (2 Form C)	CSA UL	25 A	20 ms	410 mA	General Purpose	Screw Terminal	Silver (Ag)	45 °C	-55 °C	12 Ohms	24 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
