09120023101

Active

HARTING

HAN BRID-FEMALE-C CU-BUS-MODUL(G) ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING

HAN BRID-FEMALE-C CU-BUS-MODUL(G) ROHS COMPLIANT: NA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

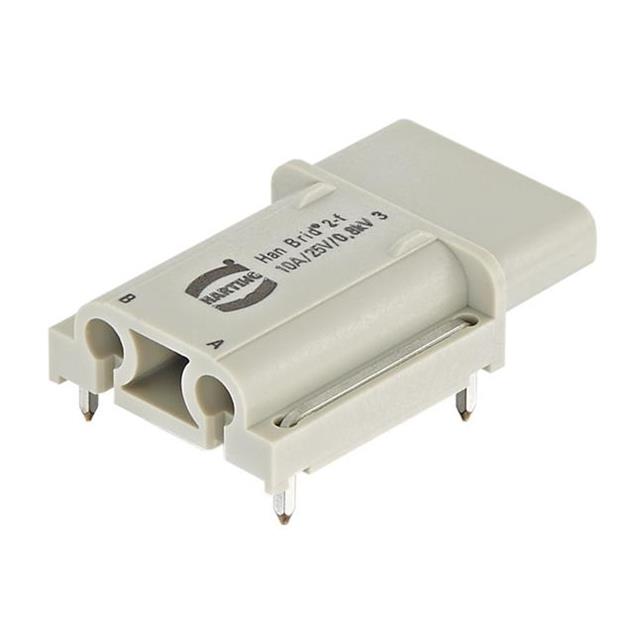

Female Module without Contacts Gray 2 Position Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	09120023101	09120023 Series

Color	Gray	Gray
Connector Type	Module without Contacts	Insert without Contacts, Module without Contacts
Contact Type	Han® D	Han® C, Han® D
Current Rating (Amps)	10 A	10 - 40 A
Gender	Female	Female, Male
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	2	2
Number of Positions	-	Ground
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	3 A	3 A
Termination Style	Crimp	Crimp
Voltage Rating	50 V	50 - 830 V

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 1+PE CONTACTS, 3A, RECEPTACLE

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Positions	Contact Type	Size	Gender	Connector Type	Termination Style	Housing Material	Material Flammability Rating	Voltage Rating	Current Rating (Amps)
HARTING 09120023152	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Female	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	830 V	40 A
HARTING 09120023051	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Male	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	400 V	40 A
HARTING 09120023101	Gray	125 °C	-40 °C		2	Han® D	3 A	Female	Module without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	50 V	10 A
HARTING 09120023011	Gray	125 °C	-40 °C		2	Han® D	3 A	Male	Module without Contacts	Crimp	Polycarbonate (PC)		50 V	10 A
HARTING 09120023052	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Male	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	830 V	40 A
HARTING 09120023151	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Female	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	400 V	40 A
