09120023051

Active

HARTING

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 2+PE CONTACTS, 3A, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09120023051

Active

HARTING

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 2+PE CONTACTS, 3A, PLUG

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	09120023051	09120023 Series

Color	Gray	Gray
Connector Type	Insert without Contacts	Insert without Contacts, Module without Contacts
Contact Type	Han® C	Han® C, Han® D
Current Rating (Amps)	40 A	10 - 40 A
Gender	Male	Female, Male
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	Ground	Ground
Number of Positions	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	3 A	3 A
Termination Style	Crimp	Crimp
Voltage Rating	400 V	50 - 830 V

09120023 Series

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 1+PE CONTACTS, 3A, RECEPTACLE

Part	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Positions	Contact Type	Size	Gender	Connector Type	Termination Style	Housing Material	Material Flammability Rating	Voltage Rating	Current Rating (Amps)
HARTING 09120023152	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Female	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	830 V	40 A
HARTING 09120023051	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Male	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	400 V	40 A
HARTING 09120023101	Gray	125 °C	-40 °C		2	Han® D	3 A	Female	Module without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	50 V	10 A
HARTING 09120023011	Gray	125 °C	-40 °C		2	Han® D	3 A	Male	Module without Contacts	Crimp	Polycarbonate (PC)		50 V	10 A
HARTING 09120023052	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Male	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	830 V	40 A
HARTING 09120023151	Gray	125 °C	-40 °C	Ground	2	Han® C	3 A	Female	Insert without Contacts	Crimp	Polycarbonate (PC)	UL94 V-0	400 V	40 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.98
		10	$ 11.88
		30	$ 11.00
		50	$ 10.61
		100	$ 10.10
		250	$ 9.47
		500	$ 9.02
		1000	$ 8.59

Description

General part information

09120023 Series

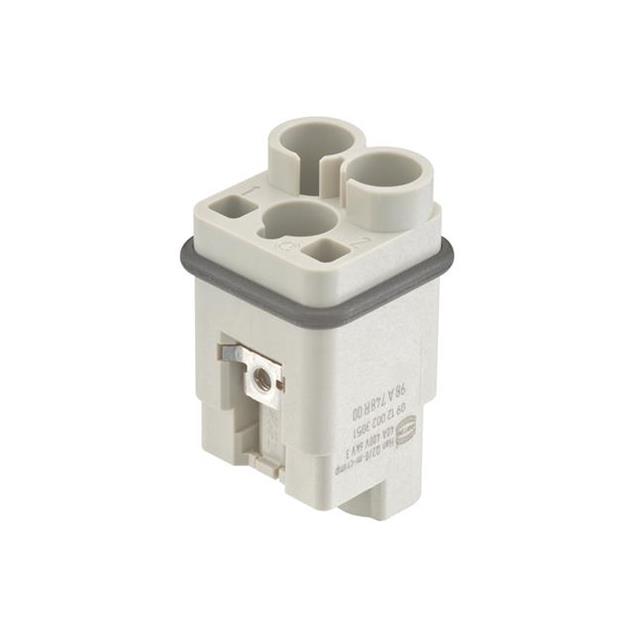

The 09120023051 from Harting is a Han® Q 2/0 male insert with 2 contacts. The insert material is polycarbonate, colour of insert is RAL 7032 (pebble grey). The contact specifications are according to IEC 61984 and EN 60664-1 standards. It is approved by UL 1977 ECBT2.E235076, UL 2237 PVVA2.E318390, CSA-C22.2 No. 182.3 PVVA8.E318390 and CSA-C22.2 No. 182.3 ECBT8.E235076 standards.
