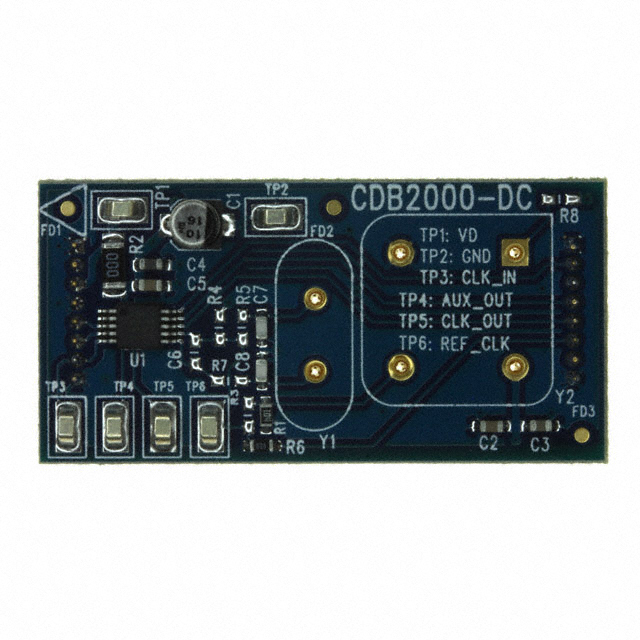

CDB2000-DCCLKCP

Cirrus Logic Inc.

BOARD EVAL GEN PURPOSE PLL

Search across all available documentation for this part.

Cirrus Logic Inc.

BOARD EVAL GEN PURPOSE PLL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDB2000-DCCLKCP	CDB2000 Series

Accessory Type	Daughter Board	Daughter Board
Contents	-	Board(s)
Embedded	-	False
For Use With/Related Products	CDB2000-MB	CDB2000-MB
Function	-	Clock Generator
Primary Attributes	-	Fractional-N, Low Jitter Clock Synthesizer, Clock Multiplier
Primary Attributes	-	75 MHz
Primary Attributes	-	6 MHz
Secondary Attributes	-	I2C, SPI, USB
Supplied Contents	-	Board(s)
Type	-	Timing
Utilized IC / Part	-	CS2000

BOARD EVAL GEN PURPOSE PLL

Part	For Use With/Related Products	Accessory Type	Function	Contents	Secondary Attributes	Supplied Contents	Primary Attributes	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part	Type
Cirrus Logic Inc. CDB2000-DCCLKCP	CDB2000-MB	Daughter Board
Cirrus Logic Inc. CDB2000-PC-CLK	CDB2000-MB	Daughter Board
Cirrus Logic Inc. CDB2000-MB			Clock Generator	Board(s)	I2C, SPI, USB	Board(s)	Clock Multiplier, Fractional-N, Low Jitter Clock Synthesizer	75 MHz	6 MHz	CS2000	Timing
Cirrus Logic Inc. CDB2000-PC-LCO	CDB2000-MB	Daughter Board

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.15

General part information

CDB2000-MB - Daughter Board

Technical documentation and resources
