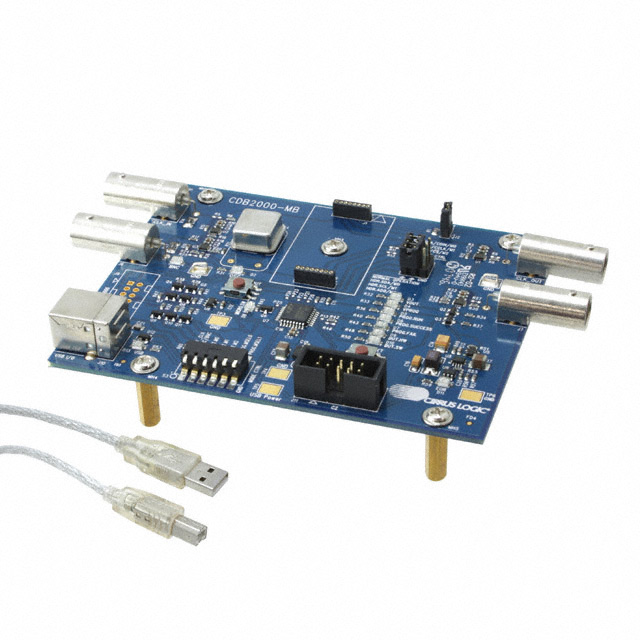

CDB2000-MB

Obsolete

Cirrus Logic Inc.

BOARD EVAL GEN PURPOSE PLL

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

BOARD EVAL GEN PURPOSE PLL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 333.94

General part information

CS2000 - Clock Generator Timing Evaluation Board

Technical documentation and resources

Specification	CDB2000-MB	CDB2000 Series

Accessory Type	-	Daughter Board
Contents	Board(s)	Board(s)
Embedded	False	False
For Use With/Related Products	-	CDB2000-MB
Function	Clock Generator	Clock Generator
Primary Attributes	Fractional-N, Low Jitter Clock Synthesizer, Clock Multiplier	Fractional-N, Low Jitter Clock Synthesizer, Clock Multiplier
Primary Attributes [Max]	75 MHz	75 MHz
Primary Attributes [Min]	6 MHz	6 MHz
Secondary Attributes	I2C, SPI, USB	I2C, SPI, USB
Supplied Contents	Board(s)	Board(s)
Type	Timing	Timing
Utilized IC / Part	CS2000	CS2000

Part	For Use With/Related Products	Accessory Type	Function	Contents	Secondary Attributes	Supplied Contents	Primary Attributes	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part	Type
Cirrus Logic Inc. CDB2000-DCCLKCP	CDB2000-MB	Daughter Board
Cirrus Logic Inc. CDB2000-PC-CLK	CDB2000-MB	Daughter Board
Cirrus Logic Inc. CDB2000-MB			Clock Generator	Board(s)	I2C, SPI, USB	Board(s)	Clock Multiplier, Fractional-N, Low Jitter Clock Synthesizer	75 MHz	6 MHz	CS2000	Timing
Cirrus Logic Inc. CDB2000-PC-LCO	CDB2000-MB	Daughter Board
