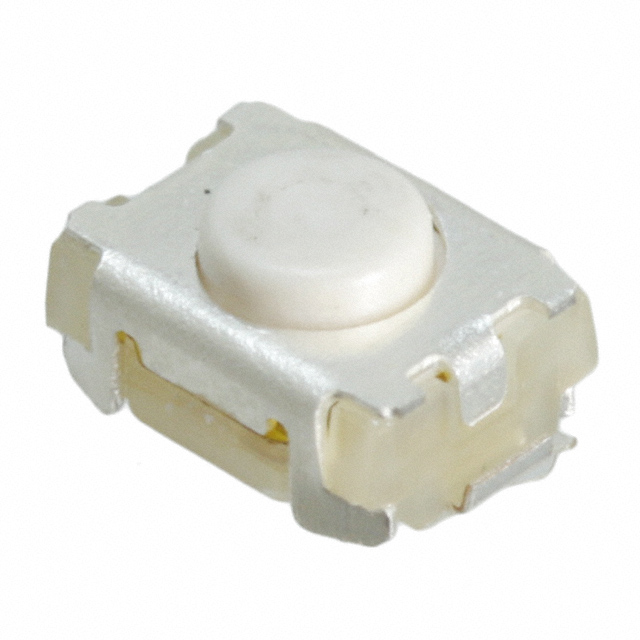

TL1015AF160QG
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL1015AF160QG
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL1015AF160QG |
|---|---|
| Actuator Height off PCB, Vertical [z] | 2 mm |
| Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline [x] | 3.9 mm |
| Outline [y] | 2.9 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | Gull Wing |
