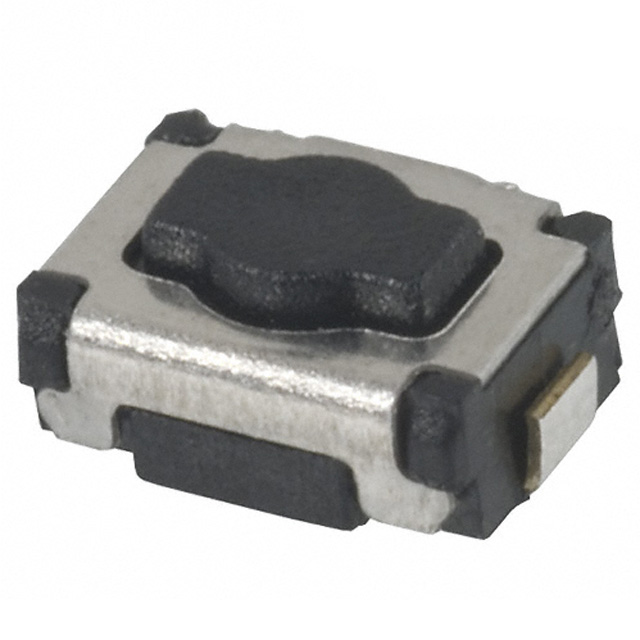

TL1015BF160QG

Obsolete

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL1015BF160QG

Actuator Height off PCB, Vertical [z]	2 mm
Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Board Guide
Illumination	Non-Illuminated
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	3.9 mm
Outline [y]	2.9 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	Gull Wing

Part	Switch Travel	Circuit	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Mechanical Life	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Mounting Type	Actuator Orientation	Switch Function	Illumination	Outline [y]	Outline [x]	Actuator Material
E-Switch TL1015BF160QG	0.2 mm	SPST-NO	2 mm	0.05 A 12 VDC	200000 Cycles	Board Guide	-20 C	70 °C	Gull Wing	Standard	Surface Mount	Top Actuated	Off-Mom	Non-Illuminated	2.9 mm	3.9 mm	Nylon 4/6 Polyamide (PA46)
E-Switch TL1015AF160QG	0.2 mm	SPST-NO	2 mm	0.05 A 12 VDC	200000 Cycles		-20 C	70 °C	Gull Wing	Standard	Surface Mount	Top Actuated	Off-Mom	Non-Illuminated	2.9 mm	3.9 mm	Nylon 4/6 Polyamide (PA46)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
