PCM1841QRGERQ1
ActiveAUTOMOTIVE, QUAD-CHANNEL 32-BIT 192-KHZ AUDIO ANALOG-TO-DIGITAL CONVERTER (ADC)
Deep-Dive with AI
Search across all available documentation for this part.
PCM1841QRGERQ1
ActiveAUTOMOTIVE, QUAD-CHANNEL 32-BIT 192-KHZ AUDIO ANALOG-TO-DIGITAL CONVERTER (ADC)
Technical Specifications
Parameters and characteristics for this part
| Specification | PCM1841QRGERQ1 |
|---|---|
| Data Interface | TDM, I2S, Left-Justified |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Channels | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

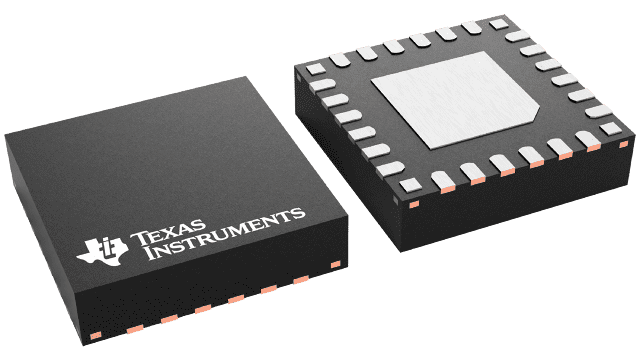

| Package / Case | 24-VFQFN Exposed Pad |
| Qualification | AEC-Q100 |
| Resolution (Bits) | 32 b |
| Sampling Rate (Per Second) | 192 k per second |
| Supplier Device Package | 24-VQFN (4x4) |
| Type | ADC, Audio |
| Voltage - Supply [Max] | 3.6 V, 1.95 V |
| Voltage - Supply [Min] | 3 V, 1.65 V |
| Voltage Supply Source | Analog, Digital |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 2.27 | |
| Texas Instruments | LARGE T&R | 1 | $ 3.79 | |
| 100 | $ 3.13 | |||
| 250 | $ 2.25 | |||
| 1000 | $ 1.69 | |||
PCM1841-Q1 Series
Automotive, quad-channel 32-bit 192-kHz audio analog-to-digital converter (ADC)
| Part | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Grade | Qualification | Resolution (Bits) | Number of Channels | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Package / Case | Type | Sampling Rate (Per Second) | Data Interface | Voltage Supply Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments PCM1841QRGERQ1 | 24-VQFN (4x4) | 125 °C | -40 °C | Automotive | AEC-Q100 | 32 b | 4 | 1.95 V, 3.6 V | 1.65 V, 3 V | Surface Mount | 24-VFQFN Exposed Pad | ADC, Audio | 192 k per second | I2S, Left-Justified, TDM | Analog, Digital |
Description
General part information
PCM1841-Q1 Series
The PCM1841-Q1 is a high-performance, Burr-Brown™ audio analog-to-digital converter (ADC) that supports simultaneous sampling of up to four analog channels. The device supports differential line and microphone inputs with a 2VRMS full-scale signal. The device integrates microphone bias voltage, a phase-locked loop (PLL), a DC removal high-pass filter (HPF), and supports sample rates up to 192kHz. The device supports time-division multiplexing (TDM), I2S, or left-justified (LJ) audio formats, selectable with the hardware pin level. Additionally, the PCM1841-Q1 supports controller and target mode selection for the audio bus interface operation. These integrated high-performance features, along with the ability to be powered from a single supply of 3.3V, make the device an excellent choice for cost-sensitive, space-constrained audio systems in far-field microphone recording applications.
The PCM1841-Q1 is specified from –40°C to +125°C and is offered in a 24-pin VQFN package.
The PCM1841-Q1 is a high-performance, Burr-Brown™ audio analog-to-digital converter (ADC) that supports simultaneous sampling of up to four analog channels. The device supports differential line and microphone inputs with a 2VRMS full-scale signal. The device integrates microphone bias voltage, a phase-locked loop (PLL), a DC removal high-pass filter (HPF), and supports sample rates up to 192kHz. The device supports time-division multiplexing (TDM), I2S, or left-justified (LJ) audio formats, selectable with the hardware pin level. Additionally, the PCM1841-Q1 supports controller and target mode selection for the audio bus interface operation. These integrated high-performance features, along with the ability to be powered from a single supply of 3.3V, make the device an excellent choice for cost-sensitive, space-constrained audio systems in far-field microphone recording applications.
