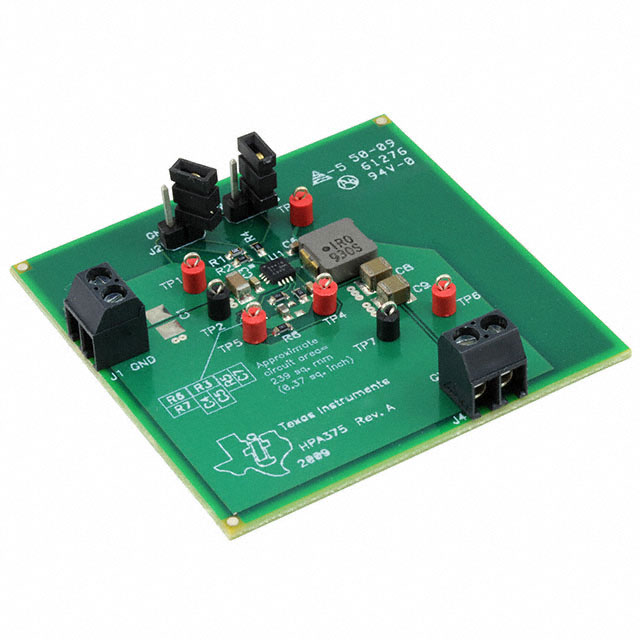

TPS54418EVM-375
ActiveEVAL MODULE FOR TPS54418-375
Deep-Dive with AI
Search across all available documentation for this part.
TPS54418EVM-375
ActiveEVAL MODULE FOR TPS54418-375
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS54418EVM-375 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 4 A |
| Frequency - Switching | 1 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TPS54418 |
| Voltage - Input [Max] | 6 V |
| Voltage - Input [Min] | 3 V |
| Voltage - Output | 1.8 V |
TPS54418A Series
2.95V to 6V Input, 4A Synchronous Step-Down SWIFT™ Converter
| Part | Number of Outputs | Function | Frequency - Switching [Max] | Frequency - Switching [Min] | Synchronous Rectifier | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] | Voltage - Input (Min) [Min] | Topology | Voltage - Input (Max) [Max] | Output Type | Supplier Device Package | Package / Case | Output Configuration | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Outputs and Type | Outputs and Type | Main Purpose | Regulator Topology | Board Type | Frequency - Switching | Supplied Contents | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 1 | Step-Down | 2 MHz | 200 kHz | 150 °C | -40 °C | Surface Mount | 0.803 V | 4.5 V | 2.95 V | Buck | 6 V | Adjustable | 16-WQFN (3x3) | 16-WFQFN Exposed Pad | Positive | 4 A | ||||||||||||
Texas Instruments | 1 | Step-Down | 2 MHz | 200 kHz | 150 °C | -40 °C | Surface Mount | 0.8 V | 4.5 V | 2.95 V | Buck | 6 V | Adjustable | 16-WQFN (3x3) | 16-WFQFN Exposed Pad | Positive | 4 A | ||||||||||||
Texas Instruments | 4 A | 3 V | 6 V | TPS54418 | Non-Isolated | 1 | DC/DC Step Down | Buck | Fully Populated | 1 MHz | Board(s) | 1.8 V | |||||||||||||||||
Texas Instruments | 1 | Step-Down | 2 MHz | 200 kHz | 150 °C | -40 °C | Surface Mount | 0.803 V | 4.5 V | 2.95 V | Buck | 6 V | Adjustable | 16-WQFN (3x3) | 16-WFQFN Exposed Pad | Positive | 4 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 58.80 | |
Description
General part information
TPS54418A Series
TheTPS54418A device is a full-featured 6-V, 4-A, synchronous, step-down, current mode converter with two integrated MOSFETs.
The TPS54418A device enables small designs by integrating the MOSFETs, implementing current mode control to reduce external component count, reducing inductor size by enabling up to 2-MHz switching frequency, and minimizing the device footprint with a small, 3 mm × 3 mm, thermally enhanced, QFN package.
The TPS54418A device provides accurate regulation for a variety of loads with an accurate ±1% voltage reference (VREF) over temperature.
