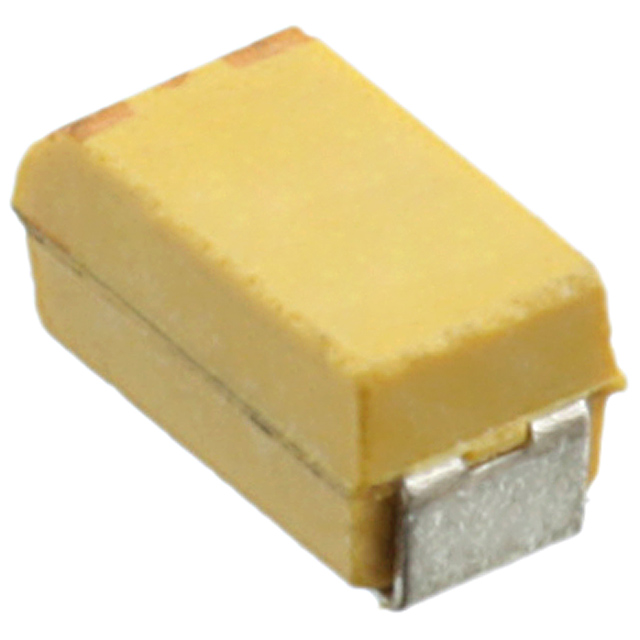

T494A104M035AH

Active

KEMET

.100UF 35.0V ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T494A104M035AH Spec

T494A104M035AH

Active

KEMET

.100UF 35.0V ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsDatasheet T494A104M035AH Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T494A104M035AH

Capacitance	100000 pF
ESR (Equivalent Series Resistance)	10 Ohm
Features	General Purpose
Height - Seated (Max) [Max]	0.071 "
Height - Seated (Max) [Max]	1.8 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	35 V

T494A Series

Part	Mounting Type	Features	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Manufacturer Size Code	Type	Capacitance	Voltage - Rated	ESR (Equivalent Series Resistance)	Package / Case	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]
KEMET T494A226K006AT	Surface Mount	General Purpose	2000 Hrs	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	A	Molded	22 µF	6.3 V	3 Ohm	1206 (3216 Metric)	10 %	-55 °C	125 °C
KEMET T494A106K010AT	Surface Mount	General Purpose	2000 Hrs	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	A	Molded	10 µF	10 V	1.8 Ohm	1206 (3216 Metric)	10 %	-55 °C	125 °C
KEMET T494A105K025AT	Surface Mount	General Purpose	2000 Hrs	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	A	Molded	1 µF	25 VDC	4 Ohm	1206 (3216 Metric)	10 %	-55 °C	125 °C
KEMET T494A104M035AH	Surface Mount	General Purpose	2000 Hrs	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	A	Molded	100000 pF	35 V	10 Ohm	1206 (3216 Metric)	20 %	-55 °C	125 °C
KEMET T494A334K035AT	Surface Mount	General Purpose	2000 Hrs	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	A	Molded	0.33 µF	35 V	6 Ohm	1206 (3216 Metric)	10 %	-55 °C	125 °C
KEMET T494A155K025AT	Surface Mount	General Purpose	2000 Hrs	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	A	Molded	1.5 µF	25 VDC	3 Ohm	1206 (3216 Metric)	10 %	-55 °C	125 °C
KEMET T494A334K025AT	Surface Mount	General Purpose	2000 Hrs	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	A	Molded	0.33 µF	25 VDC	10 Ohm	1206 (3216 Metric)	10 %	-55 °C	125 °C
KEMET T494A335M016AT	Surface Mount	General Purpose	2000 Hrs	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	A	Molded	3.3 µF	16 V	4 Ohm	1206 (3216 Metric)	20 %	-55 °C	125 °C
KEMET T494A336K006AT	Surface Mount	General Purpose	2000 Hrs	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	A	Molded	33 ÁF	6.3 V	2 Ohm	1206 (3216 Metric)	10 %	-55 °C	125 °C
KEMET T494A156K010AT	Surface Mount	General Purpose	2000 Hrs	0.071 "	1.8 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	A	Molded	15 µF	10 V	3.2 Ohm	1206 (3216 Metric)	10 %	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.21
Newark	Each (Supplied on Full Reel)	1	$ 0.24
		5000	$ 0.24
		10000	$ 0.22
		20000	$ 0.21
		30000	$ 0.19
		50000	$ 0.18

Description

General part information

T494A Series

0.1 µF Molded Tantalum Capacitors 35 V 1206 (3216 Metric) 10Ohm @ 100kHz

Documents

Technical documentation and resources

Datasheet

T494A104M035AH Spec

Datasheet
