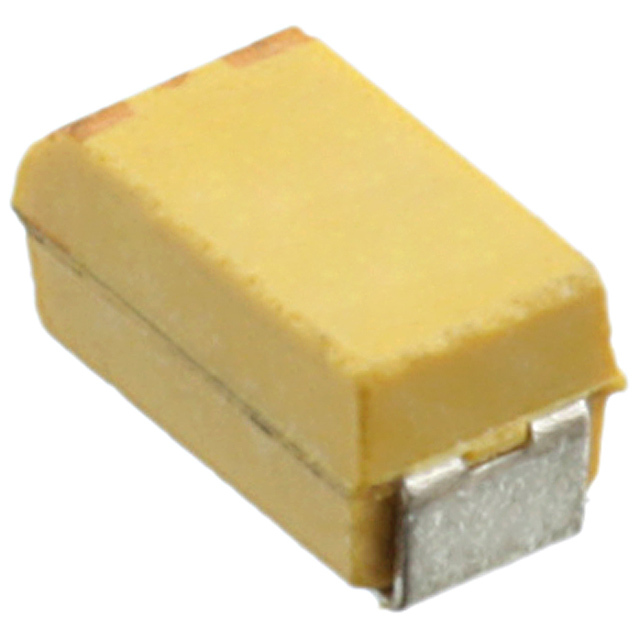

T494A334K025AT
Active330NF 25V 10Ω ±10% 1206 TANTALUM CAPACITORS ROHS HIGHER VOLTAGE RATINGS AND TIGHTER TOLERANCE PRODUCT INCLUDING ESR MAY BE SUBSTITUTED WITHIN THE SAME SIZE AT KEMET'S OPTION. VOLTAGE SUBSTITUTION WILL BE MARKED WITH THE HIGHER VOLTAGE RATING. SUBSTITUTIONS CAN INCLUDE BETTER THAN SERIES.
Deep-Dive with AI
Search across all available documentation for this part.
T494A334K025AT
Active330NF 25V 10Ω ±10% 1206 TANTALUM CAPACITORS ROHS HIGHER VOLTAGE RATINGS AND TIGHTER TOLERANCE PRODUCT INCLUDING ESR MAY BE SUBSTITUTED WITHIN THE SAME SIZE AT KEMET'S OPTION. VOLTAGE SUBSTITUTION WILL BE MARKED WITH THE HIGHER VOLTAGE RATING. SUBSTITUTIONS CAN INCLUDE BETTER THAN SERIES.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T494A334K025AT |
|---|---|
| Capacitance | 0.33 µF |
| ESR (Equivalent Series Resistance) | 10 Ohm |
| Features | General Purpose |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| 10 | $ 0.49 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.70 | ||
| 10 | $ 0.49 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 2000 | $ 0.22 | ||
| 4000 | $ 0.21 | |||
| 10000 | $ 0.20 | |||
| 14000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
| LCSC | Piece | 1 | $ 0.26 | |
| 200 | $ 0.10 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.10 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.26 | |
| 5000 | $ 0.25 | |||
| 10000 | $ 0.23 | |||
| 20000 | $ 0.21 | |||
| 30000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
T494A Series
0.33 µF Molded Tantalum Capacitors 25 V 1206 (3216 Metric) 10Ohm
