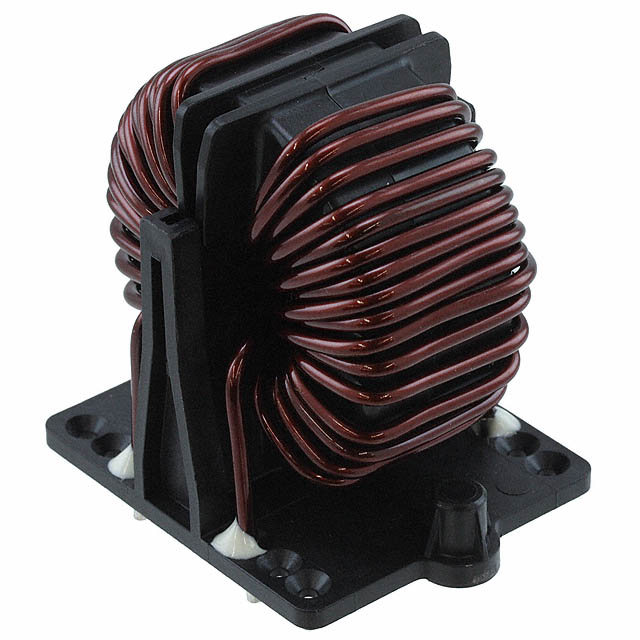

RB8522-16-3M0

Active

TE Connectivity AMP Connectors

CMC 3MH 16A 2LN TH

RB8522-16-3M0

Active

TE Connectivity AMP Connectors

CMC 3MH 16A 2LN TH

Description Specifications Series Pricing CAD Documents

Description

General part information

Schaffner RB-Series Series

600 VDC, 16 A, PCB Terminal, PD2 Pollution Degree, IP00, Vertical, UL 94V-0, Board Mount, Schaffner RB-Series, EMC Chokes

Technical Specifications

Parameters and characteristics for this part

Specification	RB8522-16-3M0

Current Rating (Max)	16 A
DC Resistance (DCR) (Max)	8.4 mOhm
DC Resistance (DCR) (Typ)	8.4 mOhm
Filter Type	Power Line
Height (Max)	2.283 in
Inductance	3 mH
Mounting Type	Through Hole
Number of Lines	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Vertical
Package Leads	8 PC Pin
Package Name	Vertical
Pad Count	8 PC Pin
Pin Count	8
Size / Dimension Length	1.969 in
Size / Dimension Width	1.709 in
Voltage Rating - AC	600 VAC
Voltage Rating - DC	1 kV

Schaffner RB-Series Series

Part	DC Resistance (DCR) (Max)	DC Resistance (DCR) (Typ)	Size / Dimension Length	Size / Dimension Width	Inductance	Voltage Rating - DC	Number of Lines	Current Rating (Max)	Mounting Type	Voltage Rating - AC	Height (Max)	Pad Count	Package / Case	Package Name	Pin Count	Filter Type	Operating Temperature (Max)	Operating Temperature (Min)	Package Leads
TE Connectivity AMP Connectors RB6532-36-0M4	1.5 mOhm	1.5 mOhm	2.441 in	2.283 in	420 µH	1 kV	3	36 A	Through Hole	600 VAC	2.756 in	6 PC Pin	Vertical	Vertical	6	Power Line	125 °C	-40 °C
TE Connectivity AMP Connectors RB8522-16-3M0	8.4 mOhm	8.4 mOhm	1.969 in	1.709 in	3 mH	1 kV	2	16 A	Through Hole	600 VAC	2.283 in	8 PC Pin	Vertical	Vertical	8	Power Line	125 °C	-40 °C	8 PC Pin
TE Connectivity AMP Connectors RB6122-36-0M5	1.5 mOhm	1.5 mOhm	2.402 in	2.276 in	450 µH	1 kV	2	36 A	Through Hole	600 VAC	1.496 in		4 PC Pin Horizontal	Horizontal		Power Line	125 °C	-40 °C	4 Leads
TE Connectivity AMP Connectors RB6122-25-0M6	2.7 mOhm	2.7 mOhm	2.098 in	2.02 in	640 µH	1 kV	2	25 A	Through Hole	600 VAC	1.634 in		4 PC Pin Horizontal	Horizontal		Power Line	125 °C	-40 °C	4 Leads
TE Connectivity AMP Connectors RB8532-36-0M8	2.3 mOhm	2.3 mOhm	2.992 in	2.48 in	830 µH	1 kV	3	36 A	Through Hole	600 VAC	3.228 in	6 PC Pin	Vertical	Vertical	6	Power Line	125 °C	-40 °C
TE Connectivity AMP Connectors RB6522-36-0M5	1.5 mOhm	1.5 mOhm	1.969 in	1.709 in	450 µH	1 kV	2	36 A	Through Hole	600 VAC	2.283 in		4 PC Pin Vertical	Vertical		Power Line	125 °C	-40 °C	4 Leads
TE Connectivity AMP Connectors RB6522-36-0M5	1.5 mOhm	1.5 mOhm	1.969 in	1.709 in	450 µH	1 kV	2	36 A	Through Hole	600 VAC	2.283 in		4 PC Pin Vertical	Vertical		Power Line	125 °C	-40 °C	4 Leads
TE Connectivity AMP Connectors RB6522-16-1M0	4.6 mOhm	4.6 mOhm	1.846 in	1.772 in	1 mH	1 kV	2	16 A	Through Hole	600 VAC	2.047 in		4 PC Pin Vertical	Vertical		Power Line	125 °C	-40 °C	4 Leads
TE Connectivity AMP Connectors RB6532-36-0M4	1.5 mOhm	1.5 mOhm	2.441 in	2.283 in	420 µH	1 kV	3	36 A	Through Hole	600 VAC	2.756 in	6 PC Pin	Vertical	Vertical	6	Power Line	125 °C	-40 °C
TE Connectivity AMP Connectors RB6132-16-0M8	4.6 mOhm	4.6 mOhm	2.315 in	2.276 in	800 µH	1 kV	3	16 A	Through Hole	600 VAC	1.89 in		4 PC Pin Horizontal	Horizontal		Power Line	125 °C	-40 °C	4 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

RFI Chokes RB series
