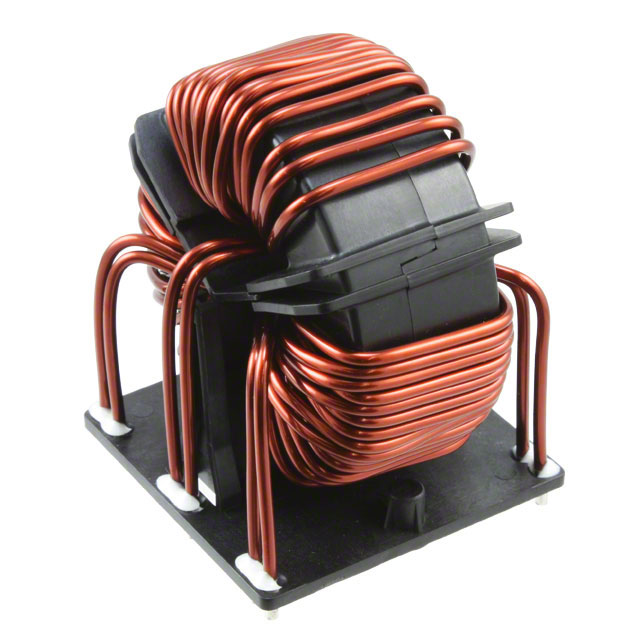

RB8532-36-0M8
ActiveTE Connectivity Raychem Cable Protection
CMC 830UH 36A 3LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RB8532-36-0M8
ActiveTE Connectivity Raychem Cable Protection
CMC 830UH 36A 3LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB8532-36-0M8 |
|---|---|
| Current Rating (Max) [Max] | 36 A |
| DC Resistance (DCR) (Max) | 2.3 mOhm |
| Filter Type | Power Line |
| Height (Max) | 82 mm |
| Height (Max) | 3.228 in |
| Inductance @ Frequency | 830 µH |
| Mounting Type | Through Hole |
| Number of Lines | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6 Leads |
| Package / Case | Vertical |
| Size / Dimension [x] | 2.992 in |
| Size / Dimension [x] | 76 mm |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [y] | 2.48 in |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 1 kVDC |
| Voltage Rating - DC | 1 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.70 | |
| 10 | $ 33.38 | |||
Description
General part information
RB8532 Series
830 µH @ 400 Hz 3 Line Common Mode Choke Through Hole 36A DCR 2.3mOhm (Typ)
