RB8532-25-0M9

Active

TE Connectivity Raychem Cable Protection

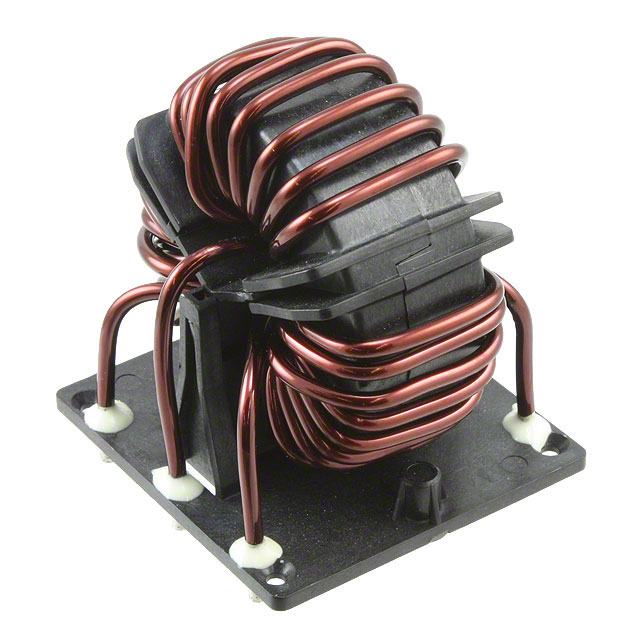

CMC 940UH 25A 3LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 940UH 25A 3LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Filter Type	Inductance @ Frequency	Voltage Rating - DC	Voltage Rating - DC	DC Resistance (DCR) (Max)	Package / Case	Package / Case	Current Rating (Max) [Max]	Number of Lines	Height (Max)	Height (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	DC Resistance (DCR) (Max) [Max]
TE Connectivity Raychem Cable Protection RB8532-36-0M8	Power Line	830 µH	1 kVDC	1 kV	2.3 mOhm	6 Leads	Vertical	36 A	3	82 mm	3.228 in	125 °C	-40 °C	600 V	63 mm	2.992 in	76 mm	2.48 in	Through Hole
TE Connectivity Raychem Cable Protection RB8532-25-0M9	Power Line	940 µH	1 kVDC	1 kV		6 Leads	Vertical	25 A	3	70 mm	2.756 in	125 °C	-40 °C	600 V	58 mm	2.441 in	62 mm	2.283 "	Through Hole	3 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.92

General part information

940 µH @ 400 Hz 3 Line Common Mode Choke Through Hole 25A DCR 3mOhm (Typ)
