Technical Specifications
Parameters and characteristics for this part
| Specification | 12HPEGD1-HG |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | cURus, ENEC, UL |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 31.5 mm |
| Panel Cutout Dimensions [y] | 56.6 mm |
| Panel Thickness [Max] | 0.079 " |
| Panel Thickness [Max] | 2 mm |
| Panel Thickness [Min] | 1 mm |
| Panel Thickness [Min] | 0.039 in |
| Switch Features | Switch On-Off |
| Termination | 0.187 " |
| Termination | 4.7 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 53.12 | |
| 18 | $ 48.75 | |||
| 27 | $ 46.87 | |||
| 54 | $ 45.31 | |||
| 108 | $ 42.81 | |||
Description
General part information

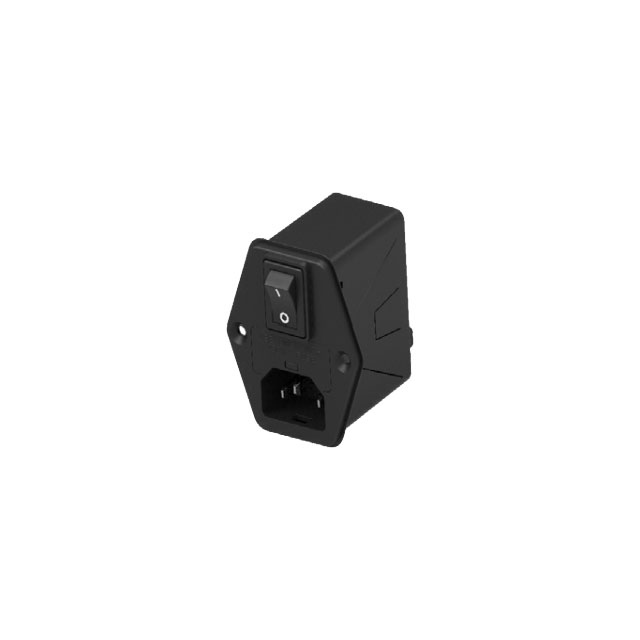

Corcom HP Series
Power Entry Module, None Input, DPST, Complete Shield, Locking Socket & Shrouded Output & Switch Guard, 1 MOPP, Corcom HP, Power Entry Modules
