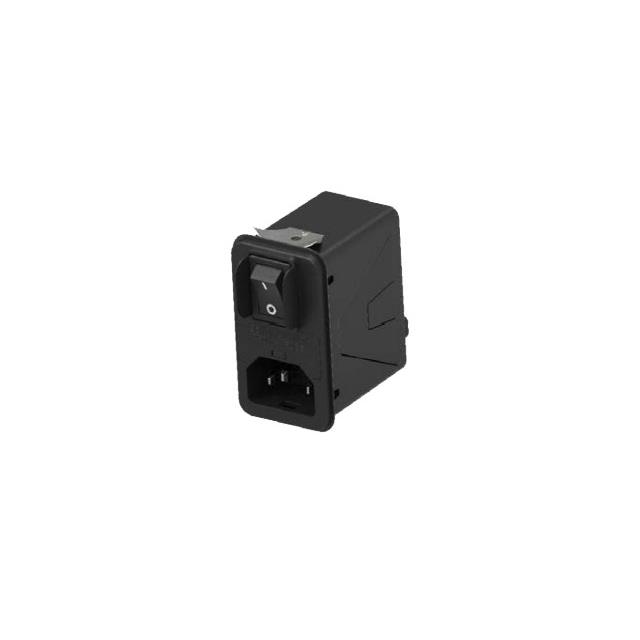

Technical Specifications
Parameters and characteristics for this part
| Specification | 3HPENS1-HG |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | cURus, ENEC, UL |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Filter | 3 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 31.5 mm |
| Panel Cutout Dimensions [y] | 56.6 mm |
| Panel Thickness [Max] | 0.079 " |
| Panel Thickness [Max] | 2 mm |
| Panel Thickness [Min] | 1 mm |
| Panel Thickness [Min] | 0.039 in |
| Termination | 0.187 " |
| Termination | 4.7 mm |
| Termination | Quick Connect |
Corcom HP Series
| Part | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Min] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Filter Type | Accomodates a Fuse | Termination | Termination | Termination | Mounting Type | Approval Agency | Fuse Holder, Drawer | Connector Style | Connector Type | Current Rating - Filter | Switch Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 0.079 " | 2 mm | 1 mm | 0.039 in | 31.5 mm | 56.6 mm | Filtered (EMI RFI) - Commercial | 0.187 " | 4.7 mm | Quick Connect | Flange Panel Mount | cURus ENEC UL | Fuse Holder | IEC 320-C18 | Male Blades Receptacle | |||
TE Connectivity Raychem Cable Protection | 0.079 " | 2 mm | 1 mm | 0.039 in | 31.5 mm | 56.6 mm | Filtered (EMI RFI) - Commercial | 0.187 " | 4.7 mm | Quick Connect | Panel Mount Snap-In | cURus ENEC UL | Fuse Holder | IEC 320-C14 | Male Blades Receptacle | 3 A | ||
TE Connectivity Raychem Cable Protection | 0.079 " | 2 mm | 1 mm | 0.039 in | 31.5 mm | 56.6 mm | Filtered (EMI RFI) - Commercial | 0.187 " | 4.7 mm | Quick Connect | Flange Panel Mount | cURus ENEC UL | Fuse Holder | IEC 320-C14 | Male Blades Receptacle | |||
TE Connectivity Raychem Cable Protection | 0.079 " | 2 mm | 1 mm | 0.039 in | 31.5 mm | 56.6 mm | Filtered (EMI RFI) - Commercial | 0.187 " | 4.7 mm | Quick Connect | Panel Mount Snap-In | cURus ENEC UL | Fuse Holder | IEC 320-C18 | Male Blades Receptacle | Switch On-Off | ||
TE Connectivity Raychem Cable Protection | 0.079 " | 2 mm | 1 mm | 0.039 in | 31.5 mm | 56.6 mm | Filtered (EMI RFI) - Commercial | 0.187 " | 4.7 mm | Quick Connect | Flange Panel Mount | cURus ENEC UL | Fuse Holder | IEC 320-C14 | Male Blades Receptacle | Switch On-Off | ||
TE Connectivity Raychem Cable Protection | 0.079 " | 2 mm | 1 mm | 0.039 in | 31.5 mm | 56.6 mm | Filtered (EMI RFI) - Commercial | 0.187 " | 4.7 mm | Quick Connect | Flange Panel Mount | cURus ENEC UL | Fuse Holder | IEC 320-C14 | Male Blades Receptacle | 12 A | ||
TE Connectivity Raychem Cable Protection | 0.079 " | 2 mm | 1 mm | 0.039 in | 31.5 mm | 56.6 mm | Filtered (EMI RFI) - Commercial | 0.187 " | 4.7 mm | Quick Connect | Flange Panel Mount | cURus ENEC UL | Fuse Holder | IEC 320-C18 | Male Blades Receptacle | 12 A | Switch On-Off | |
TE Connectivity Raychem Cable Protection | 0.079 " | 2 mm | 1 mm | 0.039 in | 31.5 mm | 56.6 mm | Filtered (EMI RFI) - Commercial | 0.187 " | 4.7 mm | Quick Connect | Panel Mount Snap-In | cURus ENEC UL | Fuse Holder | IEC 320-C14 | Male Blades Receptacle | 10 A | Switch On-Off | |
TE Connectivity Raychem Cable Protection | 0.079 " | 2 mm | 1 mm | 0.039 in | 31.5 mm | 56.6 mm | Filtered (EMI RFI) - Commercial | 0.187 " | 4.7 mm | Quick Connect | Panel Mount Snap-In | cURus ENEC UL | Fuse Holder | IEC 320-C18 | Male Blades Receptacle | 6 A | ||
TE Connectivity Raychem Cable Protection | 0.079 " | 2 mm | 1 mm | 0.039 in | 31.5 mm | 56.6 mm | Filtered (EMI RFI) - Commercial | 0.187 " | 4.7 mm | Quick Connect | Panel Mount Snap-In | cURus ENEC UL | Fuse Holder | IEC 320-C14 | Male Blades Receptacle | Switch On-Off |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 36 | $ 42.27 | |
Description
General part information
Corcom HP Series
Power Entry Module, None Input, DPST, Complete Shield, Locking Socket & Shrouded Output, 1 MOPP, Vertical, 3 A, Corcom HP, Power Entry Modules
