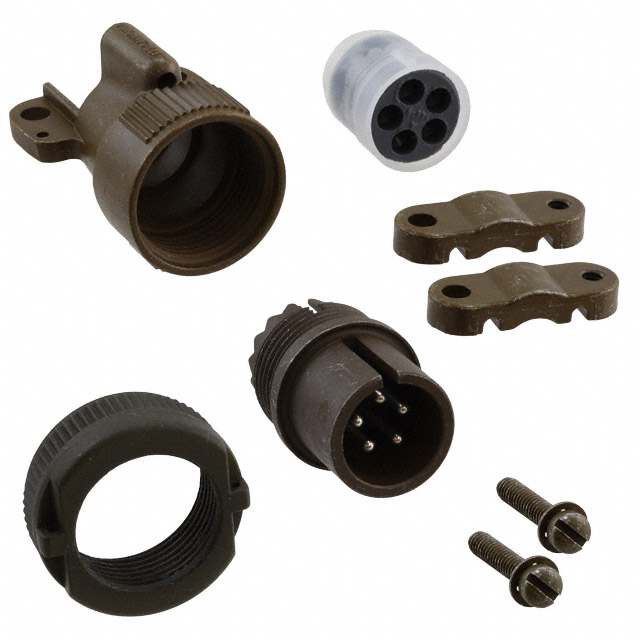

MS3106E14S-5P
ActiveITT Cannon, LLC
CONN PLUG MALE 5P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
MS3106E14S-5P
ActiveITT Cannon, LLC
CONN PLUG MALE 5P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3106E14S-5P |
|---|---|
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 22 A |
| Features | Coupling Nut, Cable Clamp |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 14S-5 |
| Voltage Rating | 250 VDC, 200 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.67 | |
| 1 | $ 31.17 | |||
| 10 | $ 27.29 | |||
| 10 | $ 49.25 | |||
| 25 | $ 26.11 | |||
| 25 | $ 47.36 | |||
| 50 | $ 25.27 | |||
| 50 | $ 45.78 | |||
| 100 | $ 24.43 | |||
| 100 | $ 43.25 | |||
| 250 | $ 23.08 | |||
Description
General part information
MS3106E14 Series
5 Position Circular Connector Plug, Male Pins Solder Cup
Documents
Technical documentation and resources
No documents available
