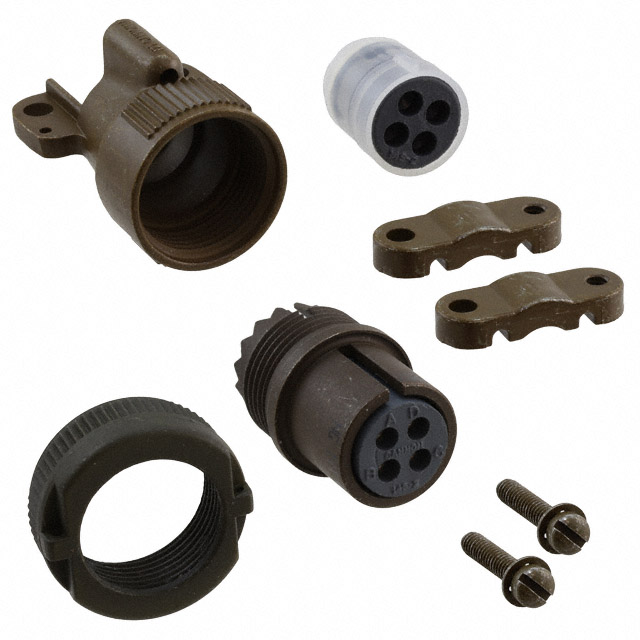

MS3106E14S-2S

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MS3106 SERIES, STRAIGHT PLUG, 4 CONTACTS, SOLDER SOCKET

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-5015 SERIES, MS3106 SERIES, STRAIGHT PLUG, 4 CONTACTS, SOLDER SOCKET

Technical Specifications

Parameters and characteristics for this part

Part	Qualification	Current Rating (Amps)	Ingress Protection	Connector Type	Features	Contact Finish - Mating	Mounting Type	Orientation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Shell Material	Primary Material	Shell Size - Insert	Grade	Voltage Rating	Number of Positions
ITT Cannon, LLC MS3106E14S-7PF187	MIL-DTL-5015	22 A	Environment Resistant	Male Pins Plug	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	N	Olive Drab	-55 °C	125 °C	Olive Drab Cadmium	Aluminum Alloy	Metal	14S-7	Military	500 VAC 700 VDC
ITT Cannon, LLC MS3106E14S-2S	MIL-DTL-5015	22 A	Environment Resistant	Female Sockets Plug	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	N	Olive Drab	-55 °C	125 °C	Olive Drab Cadmium	Aluminum Alloy	Metal	14S-2	Military	200 VAC 250 VDC	4
ITT Cannon, LLC MS3106E14S-5P	MIL-DTL-5015	22 A	Environment Resistant	Male Pins Plug	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	N	Olive Drab	-55 °C	125 °C	Olive Drab Cadmium	Aluminum Alloy	Metal	14S-5	Military	200 VAC 250 VDC
ITT Cannon, LLC MS3106E14S-2PXF187	MIL-DTL-5015	22 A	Environment Resistant	Male Pins Plug	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	X	Olive Drab	-55 °C	125 °C	Olive Drab Cadmium	Aluminum Alloy	Metal	14S-2	Military	200 VAC 250 VDC	4
ITT Cannon, LLC MS3106E14S-7PW	MIL-DTL-5015	22 A	Environment Resistant	Male Pins Plug	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	W	Olive Drab	-55 °C	125 °C	Olive Drab Cadmium	Aluminum Alloy	Metal	14S-7	Military	500 VAC 700 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

No documents available
