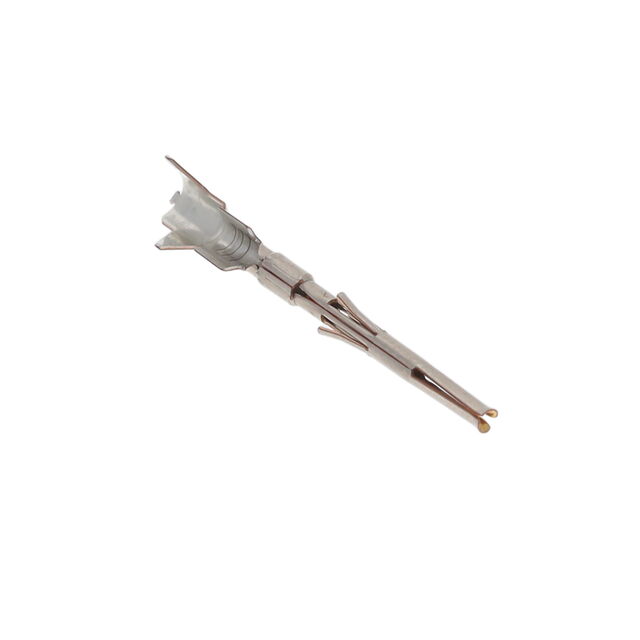

KN01S03KKP2
ActiveJAE Electronics
CONN SOCKET CONTACT #20 SIZE, AW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KN01S03KKP2
ActiveJAE Electronics
CONN SOCKET CONTACT #20 SIZE, AW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KN01S03KKP2 |
|---|---|
| Contact Finish | Gold |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.09 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.07 | |||
| 30000 | $ 0.07 | |||
| 75000 | $ 0.07 | |||
Description
General part information
KN01S Series
Contact Crimp Socket 18-22 AWG Gold
