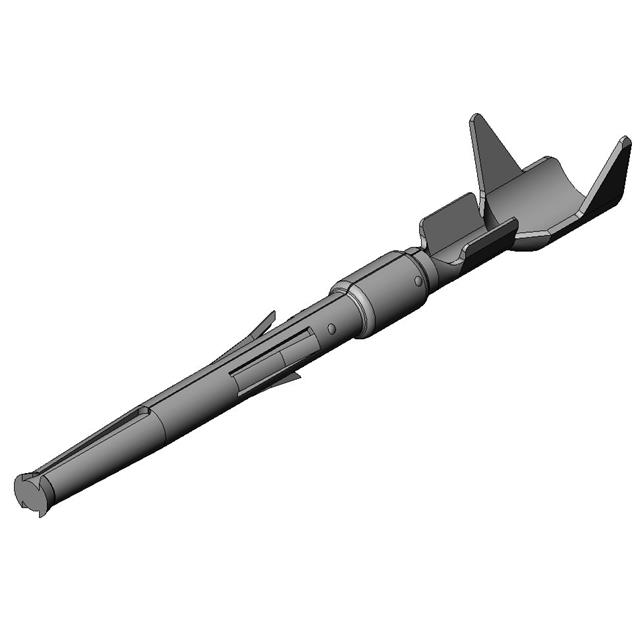

KN01S03KKP4

Active

JAE Electronics

CONN #20 SIZE SOCKET CONTACT FOR

Search across all available documentation for this part.

Active

JAE Electronics

CONN #20 SIZE SOCKET CONTACT FOR

Technical Specifications

Parameters and characteristics for this part

Part	Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Pin or Socket	Wire Gauge
JAE Electronics KN01S25HHP1	Stamped	Gold	16 AWG	20 AWG	Crimp	Socket
JAE Electronics KN01S03KKP4	Stamped	Gold	22 AWG	26 AWG	Crimp	Socket
JAE Electronics KN01S15HGP1	Stamped	Gold	12 AWG	14 AWG	Crimp	Socket
JAE Electronics KN01S12HFH1	Stamped	Silver			Crimp	Socket	10 AWG
JAE Electronics KN01S03KKP2	Stamped	Gold	17.5 AWG	22 AWG	Crimp	Socket
JAE Electronics KN01S03KKP3	Stamped	Gold	22 AWG	26 AWG	Crimp	Socket
JAE Electronics KN01S10KLH5	Stamped	Gold	22 AWG	24 AWG	Crimp	Socket
JAE Electronics KN01S15HGP2	Stamped	Gold	14 AWG	17 AWG	Crimp	Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.28

General part information

Contact Crimp Socket 22-26 AWG Gold
