341-104-520-201

Active

EDAC Inc.

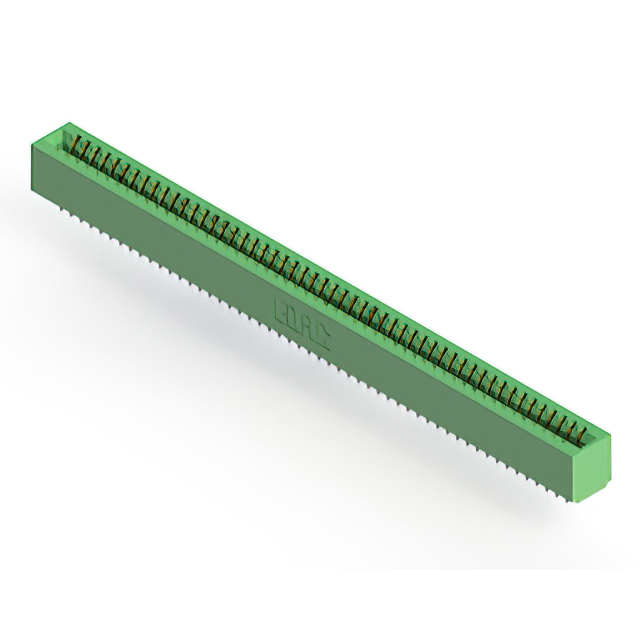

CARD EDGE CONNECTOR, 104 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-104-520-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, 104 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-104-520-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	104
Number of Positions/Bay/Row [custom]	52
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-104 Series

Part	Read Out	Features	Contact Finish	Termination Rows	Color	Material - Insulation	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Termination	Flange Feature	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-104-556-207	Dual	Card Extender	Gold	2	Green	Polyester Thermoplastic	Semi Bellows	10 Áin	0.25 Ám	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2.54 mm	0.1 in	Board Edge Straddle Mount	104	Solder	Flush Mount M3 Threaded Insert Top Opening	52	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 341-104-520-201	Dual		Gold	2	Green	Polyester Thermoplastic	Semi Bellows	10 Áin	0.25 Ám	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2.54 mm	0.1 in	Through Hole	104	Solder		52	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 341-104-556-202	Dual	Card Extender	Gold	2	Green	Polyester Thermoplastic	Semi Bellows	10 Áin	0.25 Ám	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2.54 mm	0.1 in	Board Edge Straddle Mount	104	Solder	Flush Mount Top Opening Unthreaded	52	-40 °C	105 ░C	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 341-104-500-203	Dual		Gold	2	Green	Diallyl Phthalate (DAP)	Semi Bellows	10 Áin	0.25 Ám	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2.54 mm	0.1 in	Through Hole	104	Solder Eyelet(s)	Floating Bobbin Flush Mount	52	-40 °C	105 ░C	Non Specified - Dual Edge	2.95 mm	0.116 in
EDAC Inc. 341-104-555-204	Dual	Card Extender	Gold	2	Green	Polyester Thermoplastic	Semi Bellows	10 Áin	0.25 Ám	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2.54 mm	0.1 in	Board Edge Straddle Mount	104	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	52	-40 °C	105 ░C	Non Specified - Dual Edge	3.96 mm	0.156 in
EDAC Inc. 341-104-520-204	Dual		Gold	2	Green	Polyester Thermoplastic	Semi Bellows	10 Áin	0.25 Ám	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2.54 mm	0.1 in	Through Hole	104	Solder	Flush Mount Top Opening Unthreaded	52	-40 °C	105 ░C	Non Specified - Dual Edge	3.96 mm	0.156 in
EDAC Inc. 341-104-520-202	Dual		Gold	2	Green	Polyester Thermoplastic	Semi Bellows	10 Áin	0.25 Ám	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2.54 mm	0.1 in	Through Hole	104	Solder	Flush Mount Top Opening Unthreaded	52	-40 °C	105 ░C	Non Specified - Dual Edge	3.25 mm	0.128 "
EDAC Inc. 341-104-500-204	Dual		Gold	2	Green	Diallyl Phthalate (DAP)	Semi Bellows	10 Áin	0.25 Ám	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2.54 mm	0.1 in	Through Hole	104	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	52	-40 °C	105 ░C	Non Specified - Dual Edge	3.96 mm	0.156 in
EDAC Inc. 341-104-555-208	Dual	Card Extender	Gold	2	Green	Polyester Thermoplastic	Semi Bellows	10 Áin	0.25 Ám	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2.54 mm	0.1 in	Board Edge Straddle Mount	104	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	52	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 341-104-521-208	Dual		Gold	2	Green	Polyester Thermoplastic	Semi Bellows	10 Áin	0.25 Ám	Copper Alloy	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	2.54 mm	0.1 in	Through Hole	104	Solder	4-40 Flush Mount Threaded Insert Top Opening	52	-40 °C	105 ░C	Non Specified - Dual Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.09
Newark	Each	1	$ 21.34
		100	$ 12.16
		250	$ 10.77
		500	$ 8.50
		1000	$ 7.39

Description

General part information

341-104 Series

104 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
