341-104-556-202
ActiveEDAC Inc.

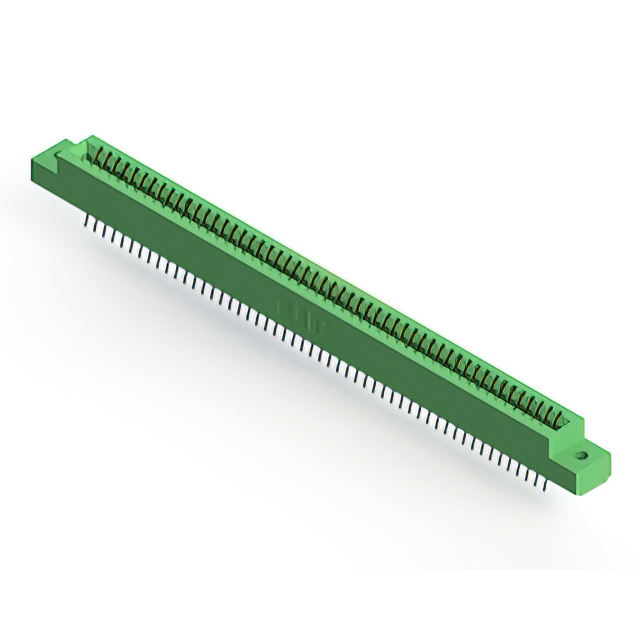

CARD EDGE CONNECTOR, 104 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-104-556-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 104 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.128, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-104-556-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 104 |
| Number of Positions/Bay/Row [custom] | 52 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-104 Series
| Part | Read Out | Features | Contact Finish | Termination Rows | Color | Material - Insulation | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Pitch [x] | Pitch [x] | Mounting Type | Number of Positions | Termination | Flange Feature | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Card Extender | Gold | 2 | Green | Polyester Thermoplastic | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2.54 mm | 0.1 in | Board Edge Straddle Mount | 104 | Solder | Flush Mount M3 Threaded Insert Top Opening | 52 | -40 °C | 105 ░C | Non Specified - Dual Edge | ||
EDAC Inc. | Dual | Gold | 2 | Green | Polyester Thermoplastic | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2.54 mm | 0.1 in | Through Hole | 104 | Solder | 52 | -40 °C | 105 ░C | Non Specified - Dual Edge | ||||
EDAC Inc. | Dual | Card Extender | Gold | 2 | Green | Polyester Thermoplastic | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2.54 mm | 0.1 in | Board Edge Straddle Mount | 104 | Solder | Flush Mount Top Opening Unthreaded | 52 | -40 °C | 105 ░C | Non Specified - Dual Edge | 3.25 mm | 0.128 " |
EDAC Inc. | Dual | Gold | 2 | Green | Diallyl Phthalate (DAP) | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2.54 mm | 0.1 in | Through Hole | 104 | Solder Eyelet(s) | Floating Bobbin Flush Mount | 52 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.95 mm | 0.116 in | |
EDAC Inc. | Dual | Card Extender | Gold | 2 | Green | Polyester Thermoplastic | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2.54 mm | 0.1 in | Board Edge Straddle Mount | 104 | Solder Eyelet(s) | Flush Mount Top Opening Unthreaded | 52 | -40 °C | 105 ░C | Non Specified - Dual Edge | 3.96 mm | 0.156 in |
EDAC Inc. | Dual | Gold | 2 | Green | Polyester Thermoplastic | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2.54 mm | 0.1 in | Through Hole | 104 | Solder | Flush Mount Top Opening Unthreaded | 52 | -40 °C | 105 ░C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |
EDAC Inc. | Dual | Gold | 2 | Green | Polyester Thermoplastic | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2.54 mm | 0.1 in | Through Hole | 104 | Solder | Flush Mount Top Opening Unthreaded | 52 | -40 °C | 105 ░C | Non Specified - Dual Edge | 3.25 mm | 0.128 " | |
EDAC Inc. | Dual | Gold | 2 | Green | Diallyl Phthalate (DAP) | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2.54 mm | 0.1 in | Through Hole | 104 | Solder Eyelet(s) | Flush Mount Top Opening Unthreaded | 52 | -40 °C | 105 ░C | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |
EDAC Inc. | Dual | Card Extender | Gold | 2 | Green | Polyester Thermoplastic | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2.54 mm | 0.1 in | Board Edge Straddle Mount | 104 | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | 52 | -40 °C | 105 ░C | Non Specified - Dual Edge | ||
EDAC Inc. | Dual | Gold | 2 | Green | Polyester Thermoplastic | Semi Bellows | 10 Áin | 0.25 Ám | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 2.54 mm | 0.1 in | Through Hole | 104 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 52 | -40 °C | 105 ░C | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 21.30 | |
Description
General part information
341-104 Series
104 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
