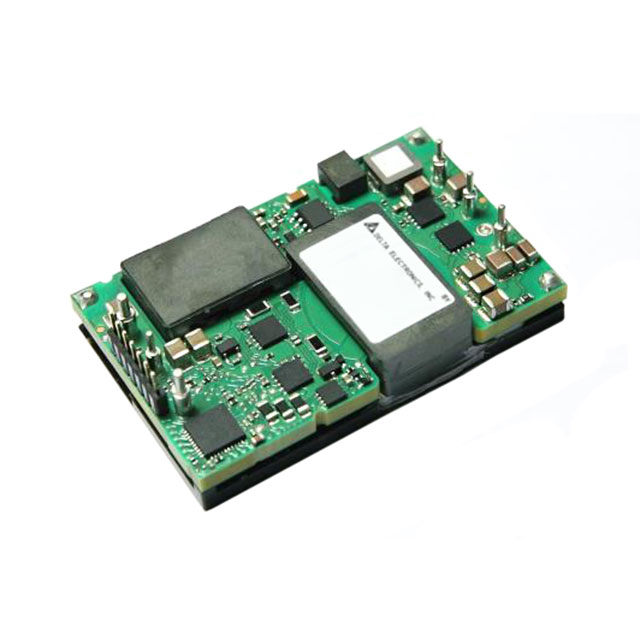

Q48SC12042NRDH
Delta Electronics
DC DC CONVERTER 12V 500W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q48SC12042NRDH
Delta Electronics
DC DC CONVERTER 12V 500W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q48SC12042NRDH |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 42 A |
| Efficiency | 95 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-DIP Module, 1/4 Brick |
| Power (Watts) | 500 W |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Isolated Module, Digital |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 80.71 | |
| 5 | $ 77.70 | |||
| 10 | $ 74.06 | |||
| 15 | $ 75.71 | |||
| 25 | $ 71.61 | |||
| 30 | $ 74.48 | |||
| 40 | $ 70.39 | |||
| 60 | $ 73.26 | |||
| 80 | $ 68.62 | |||
| 105 | $ 72.30 | |||
Description
General part information
Q48SC Series
Isolated Module, Digital DC DC Converter 1 Output 12V 42A 36V - 75V Input
