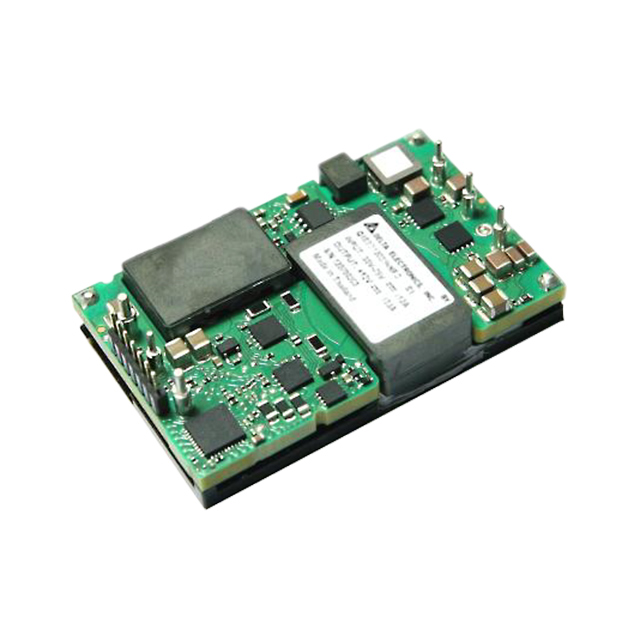

Q48SC12025NRDH

Obsolete

Delta Electronics

DC DC CONVERTER 12V 300W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER 12V 300W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Features	Supplier Device Package	Mounting Type	Power (Watts)	Package / Case	Efficiency	Type	Control Features	Voltage - Input (Max) [Max]	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Applications
Delta Electronics Q48SC12025NRAC
Delta Electronics Q48SC12033NRDH	36 V	OCP OTP OVP Remote On/Off UVLO	Quarter Brick	Through Hole	396 W	Quarter Brick	95 %	Isolated Module Digital	Active Low Enable	75 V	1.5 kV	1	85 °C	-40 °C	33 A	36.8 mm	2.3 in	1.45 in	12.7 mm	0.5 in	58.4 mm	12 V	ITE (Commercial)
Delta Electronics Q48SC12042NRDH	36 V	OCP OTP OVP Remote On/Off UVLO		Through Hole	500 W	16-DIP Module 1/4 Brick	95 %	Isolated Module Digital	Active Low Enable	75 V	1.5 kV	1	85 °C	-40 °C	42 A	36.8 mm	2.3 in	1.45 in	12.7 mm	0.5 in	58.4 mm	12 V	ITE (Commercial)
Delta Electronics Q48SC12025NRDH	36 V	OCP OTP OVP Remote On/Off UVLO	Quarter Brick	Through Hole	300 W	Quarter Brick	95.1 %	Isolated Module Digital	Active Low Enable	75 V	1.5 kV	1	85 °C	-40 °C	25 A	36.8 mm	2.3 in	1.45 in	12.7 mm	0.5 in	58.4 mm	12 V	ITE (Commercial)
Delta Electronics Q48SC12025NNAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module, Digital DC DC Converter 1 Output 12V 25A 36V - 75V Input
