MU18-8FLK
Active3M
CONN SPADE TERM 18-22AWG #8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MU18-8FLK
Active3M
CONN SPADE TERM 18-22AWG #8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MU18-8FLK | MU18 Series |
|---|---|---|
| Color | - | Red |
| Contact Finish | Tin | Tin, Nickel |
| Contact Material | ETP, Copper | Brass, ETP, Copper, Steel |
| Features | Butted Seam | Butted Seam |
| Gender | - | Female, Male |
| Insulation | Non-Insulated | Non-Insulated, Fully Insulated |
| Length - Overall [x] | 17.27 mm | 14.73 - 18.8 mm |
| Length - Overall [x] | 0.68 in | 0.58 - 0.74 in |
| Length - Ring Center to Termination | - | 0.29 in |
| Length - Ring Center to Termination | - | 7.37 mm |
| Length - Ring Center to Termination [x] | 0.25 in | 0.25 in |
| Length - Ring Center to Termination [x] | 6.35 mm | 6.35 mm |
| Length - Termination | 6.35 mm | 6.35 mm |
| Length - Termination [x] | 0.25 " | 0.25 " |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Wire Entries | - | 2 |
| Stud/Tab Size | 8 Stud | 8 Stud |
| Stud/Tab Size | - | 4 - 10 Stud |
| Tab Thickness | - | 0.02 - 0.032 " |
| Tab Thickness | - | 0.51 - 0.81 mm |
| Tab Width | - | 4.75 - 6.35 mm |
| Tab Width | - | 0.187 - 0.25 in |
| Terminal Type | Snap, Spring | Flag, Angled - 90°, Circular, Standard, Snap, Spring, Flanged, Butt Splice, Inline, Individual Openings |
| Termination | Crimp | Crimp |
| Thickness | - | 0.03 in |
| Thickness | - | 0.76 mm |
| Width - Outer Edges | - | 7.87 - 8.64 mm |
| Width - Outer Edges | - | 0.25 - 0.31 in |
| Width - Outer Edges | - | 6.35 mm |
| Width - Outer Edges | - | 0.34 in |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
MU18 Series
NON-INSULATED BUTTED SEAM FEMALE DISCONNECT FLAG TERMINAL ROHS COMPLIANT: YES
| Part | Contact Material | Features | Mounting Type | Terminal Type | Gender | Termination | Tab Thickness | Tab Thickness | Contact Finish | Tab Width | Tab Width | Wire Gauge [Max] | Wire Gauge [Min] | Insulation | Thickness | Thickness | Stud/Tab Size | Width - Outer Edges | Width - Outer Edges [y] | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Width - Outer Edges [y] | Length - Termination | Length - Termination [x] | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Number of Wire Entries | Width - Outer Edges | Length - Ring Center to Termination | Length - Ring Center to Termination | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | Butted Seam | Free Hanging (In-Line), Right Angle | Angled - 90°, Flag | Female | Crimp | 0.02 " | 0.51 mm | Tin | 4.75 mm | 0.187 in | 22 AWG | 17.5 AWG | Non-Insulated | |||||||||||||||||||
Copper, ETP | Free Hanging (In-Line) | Circular | Crimp | Tin | 22 AWG | 17.5 AWG | Non-Insulated | 0.03 in | 0.76 mm | 8 Stud | 7.87 mm | 0.31 in | 18.8 mm | 0.74 in | ||||||||||||||||||
Copper, ETP | Free Hanging (In-Line) | Circular | Crimp | Tin | 22 AWG | 17.5 AWG | Non-Insulated | 0.03 in | 0.76 mm | 0.25 " | 15.24 mm | 0.6 in | 4 Stud | 6.35 mm | ||||||||||||||||||
Brass | Butted Seam | Free Hanging (In-Line) | Standard | Female | Crimp | 0.032 in | 0.81 mm | Tin | 6.35 mm | 0.25 in | 22 AWG | 17.5 AWG | Non-Insulated | 16.76 mm | 0.66 in | |||||||||||||||||
Copper, ETP | Butted Seam | Free Hanging (In-Line) | Standard | Male | Crimp | 0.02 " | 0.51 mm | Tin | 4.75 mm | 0.187 in | 22 AWG | 17.5 AWG | Non-Insulated | 16.26 mm | 0.64 in | |||||||||||||||||
Copper, ETP | Free Hanging (In-Line) | Snap, Spring | Crimp | Tin | 22 AWG | 17.5 AWG | Non-Insulated | 8 Stud | 17.27 mm | 0.68 in | 6.35 mm | 0.25 " | 0.25 in | 6.35 mm | ||||||||||||||||||
Copper, ETP | Butted Seam | Free Hanging (In-Line) | Flanged | Crimp | Tin | 22 AWG | 17.5 AWG | Non-Insulated | 16.5 mm | 0.65 " | 10 Stud | 6.35 mm | 0.25 " | 0.25 in | 6.35 mm | |||||||||||||||||
Copper | Butted Seam | Free Hanging (In-Line) | Standard | Male | Crimp | 0.02 " | 0.51 mm | Tin | 4.75 mm | 0.187 in | 22 AWG | 17.5 AWG | Non-Insulated | 16.26 mm | 0.64 in | |||||||||||||||||
Copper | Butted Seam | Free Hanging (In-Line) | Standard | Crimp | Tin | 22 AWG | 17.5 AWG | Non-Insulated | 16.5 mm | 0.65 " | 10 Stud | 6.35 mm | 0.25 " | 0.25 in | 6.35 mm | |||||||||||||||||
Brass | Butted Seam | Free Hanging (In-Line) | Standard | Female | Crimp | 0.02 " | 0.51 mm | Tin | 4.75 mm | 0.187 in | 22 AWG | 17.5 AWG | Non-Insulated | 14.73 mm | 0.58 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.32 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.18 | |||
| 3000 | $ 0.16 | |||
Description
General part information
MU18 Series

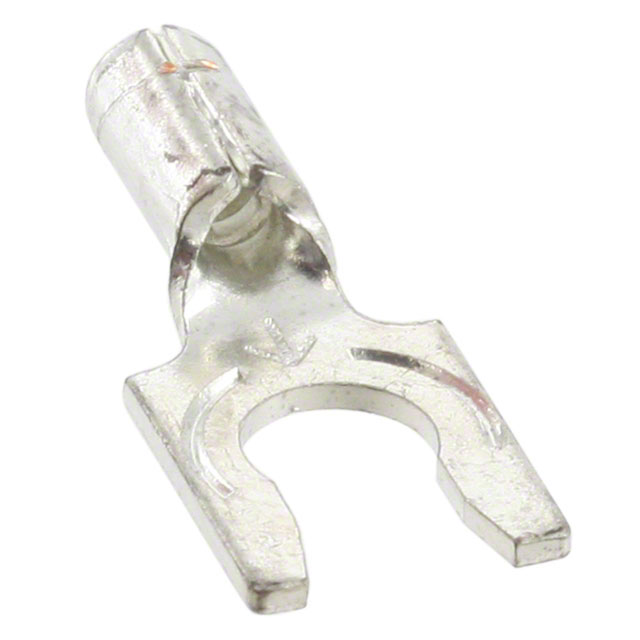

8 Stud Spade Terminal Connector Crimp 18-22 AWG
