MU18-4R/SK

Active

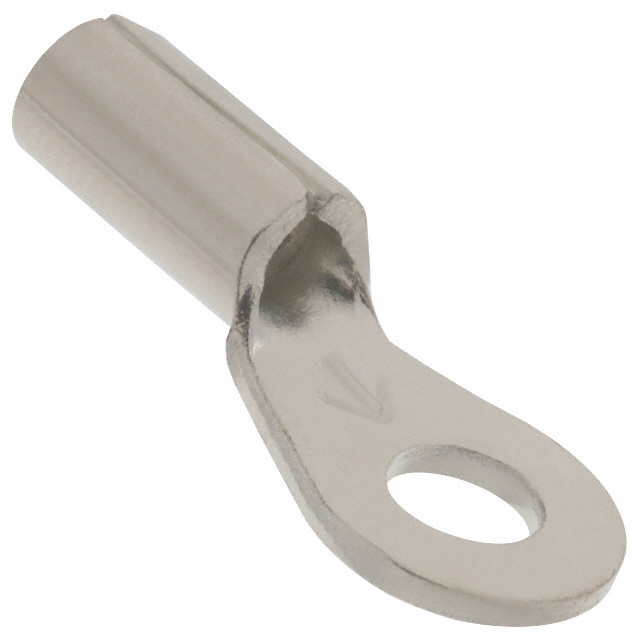

RING TONGUE TERMINAL 18-22AWG ETP COPPER 15.24MM TIN BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MU18-4R/SK

Active

RING TONGUE TERMINAL 18-22AWG ETP COPPER 15.24MM TIN BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	812	$ 0.12
Digikey	Bulk	1	$ 0.41
		10	$ 0.31
		25	$ 0.28
		50	$ 0.26
		100	$ 0.24
		250	$ 0.21
		500	$ 0.20
		1000	$ 0.18
		3000	$ 0.16

Description

General part information

MU18 Series

Ring Terminal Connector 4 Stud Circular 18-22 AWG Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MU18-4R/SK	MU18 Series

Color	-	Red
Contact Finish	Tin	Tin, Nickel
Contact Material	ETP, Copper	Brass, ETP, Copper, Steel
Features	-	Butted Seam
Gender	-	Female, Male
Insulation	Non-Insulated	Non-Insulated, Fully Insulated
Length - Overall [x]	0.6 in	0.58 - 0.74 in
Length - Overall [x]	15.24 mm	14.73 - 18.8 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Termination	-	6.35 mm
Length - Termination	-	0.25 "
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Wire Entries	-	2
Stud/Tab Size	4 Stud	4 - 10 Stud
Stud/Tab Size	-	8 Stud
Tab Thickness	-	0.02 - 0.032 "
Tab Thickness	-	0.51 - 0.81 mm
Tab Width	-	4.75 - 6.35 mm
Tab Width	-	0.187 - 0.25 in
Terminal Type	Circular	Flag, Angled - 90°, Circular, Standard, Snap, Spring, Flanged, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	0.03 in	0.03 in
Thickness	0.76 mm	0.76 mm
Width - Outer Edges	-	7.87 - 8.64 mm
Width - Outer Edges	-	0.34 in
Width - Outer Edges [y]	0.25 "	0.25 - 0.31 in
Width - Outer Edges [y]	6.35 mm	6.35 mm
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

MU18 Series

NON-INSULATED BUTTED SEAM FEMALE DISCONNECT FLAG TERMINAL ROHS COMPLIANT: YES

Part	Contact Material	Features	Mounting Type	Terminal Type	Gender	Termination	Tab Thickness	Tab Thickness	Contact Finish	Tab Width	Tab Width	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Thickness	Thickness	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges [y]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges [y]	Length - Termination	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]
3M MU18-187DF/FLAGK	Brass	Butted Seam	Free Hanging (In-Line), Right Angle	Angled - 90°, Flag	Female	Crimp	0.02 "	0.51 mm	Tin	4.75 mm	0.187 in	22 AWG	17.5 AWG	Non-Insulated
3M MU18-8RLX-BOTTLE	Copper, ETP		Free Hanging (In-Line)	Circular		Crimp			Tin			22 AWG	17.5 AWG	Non-Insulated	0.03 in	0.76 mm	8 Stud	7.87 mm	0.31 in	18.8 mm	0.74 in
3M MU18-4R/SK	Copper, ETP		Free Hanging (In-Line)	Circular		Crimp			Tin			22 AWG	17.5 AWG	Non-Insulated	0.03 in	0.76 mm			0.25 "	15.24 mm	0.6 in	4 Stud	6.35 mm
3M MU18-250DFK	Brass	Butted Seam	Free Hanging (In-Line)	Standard	Female	Crimp	0.032 in	0.81 mm	Tin	6.35 mm	0.25 in	22 AWG	17.5 AWG	Non-Insulated						16.76 mm	0.66 in
3M MU18-187DMX-BOTTLE	Copper, ETP	Butted Seam	Free Hanging (In-Line)	Standard	Male	Crimp	0.02 "	0.51 mm	Tin	4.75 mm	0.187 in	22 AWG	17.5 AWG	Non-Insulated						16.26 mm	0.64 in
3M MU18-8FLX-BOTTLE	Copper, ETP		Free Hanging (In-Line)	Snap, Spring		Crimp			Tin			22 AWG	17.5 AWG	Non-Insulated			8 Stud			17.27 mm	0.68 in			6.35 mm	0.25 "	0.25 in	6.35 mm
3M MU18-10FFBK (BULK)	Copper, ETP	Butted Seam	Free Hanging (In-Line)	Flanged		Crimp			Tin			22 AWG	17.5 AWG	Non-Insulated						16.5 mm	0.65 "	10 Stud		6.35 mm	0.25 "	0.25 in	6.35 mm
3M MU18-187DMK	Copper	Butted Seam	Free Hanging (In-Line)	Standard	Male	Crimp	0.02 "	0.51 mm	Tin	4.75 mm	0.187 in	22 AWG	17.5 AWG	Non-Insulated						16.26 mm	0.64 in
3M MU18-10FBK	Copper	Butted Seam	Free Hanging (In-Line)	Standard		Crimp			Tin			22 AWG	17.5 AWG	Non-Insulated						16.5 mm	0.65 "	10 Stud		6.35 mm	0.25 "	0.25 in	6.35 mm
3M MU18-187DFK	Brass	Butted Seam	Free Hanging (In-Line)	Standard	Female	Crimp	0.02 "	0.51 mm	Tin	4.75 mm	0.187 in	22 AWG	17.5 AWG	Non-Insulated						14.73 mm	0.58 in
