MU18-187DMX-BOTTLE

Active

CONN QC TAB 18-22AWG 0.187 100PC

Deep-Dive with AI

Search across all available documentation for this part.

MU18-187DMX-BOTTLE

Active

CONN QC TAB 18-22AWG 0.187 100PC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 89.34

Description

General part information

MU18 Series

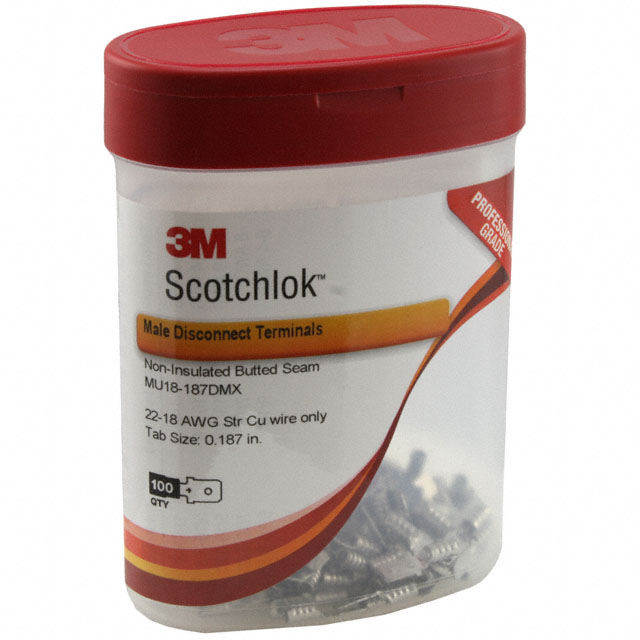

0.187" (4.75mm) Quick Connect Male 18-22 AWG Crimp Connector Non-Insulated

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MU18-187DMX-BOTTLE	MU18 Series

Color	-	Red
Contact Finish	Tin	Tin, Nickel
Contact Material	ETP, Copper	Brass, ETP, Copper, Steel
Features	Butted Seam	Butted Seam
Gender	Male	Female, Male
Insulation	Non-Insulated	Non-Insulated, Fully Insulated
Length - Overall [x]	16.26 mm	14.73 - 18.8 mm
Length - Overall [x]	0.64 in	0.58 - 0.74 in
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Termination	-	6.35 mm
Length - Termination	-	0.25 "
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Wire Entries	-	2
Stud/Tab Size	-	8 Stud
Stud/Tab Size	-	4 - 10 Stud
Tab Thickness	0.02 "	0.02 - 0.032 "
Tab Thickness	0.51 mm	0.51 - 0.81 mm
Tab Width	4.75 mm	4.75 - 6.35 mm
Tab Width	0.187 in	0.187 - 0.25 in
Terminal Type	Standard	Flag, Angled - 90°, Circular, Standard, Snap, Spring, Flanged, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	7.87 - 8.64 mm
Width - Outer Edges	-	0.25 - 0.31 in
Width - Outer Edges	-	6.35 mm
Width - Outer Edges	-	0.34 in
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

MU18 Series

NON-INSULATED BUTTED SEAM FEMALE DISCONNECT FLAG TERMINAL ROHS COMPLIANT: YES

Part	Contact Material	Features	Mounting Type	Terminal Type	Gender	Termination	Tab Thickness	Tab Thickness	Contact Finish	Tab Width	Tab Width	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Thickness	Thickness	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges [y]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges [y]	Length - Termination	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]
3M MU18-187DF/FLAGK	Brass	Butted Seam	Free Hanging (In-Line), Right Angle	Angled - 90°, Flag	Female	Crimp	0.02 "	0.51 mm	Tin	4.75 mm	0.187 in	22 AWG	17.5 AWG	Non-Insulated
3M MU18-8RLX-BOTTLE	Copper, ETP		Free Hanging (In-Line)	Circular		Crimp			Tin			22 AWG	17.5 AWG	Non-Insulated	0.03 in	0.76 mm	8 Stud	7.87 mm	0.31 in	18.8 mm	0.74 in
3M MU18-4R/SK	Copper, ETP		Free Hanging (In-Line)	Circular		Crimp			Tin			22 AWG	17.5 AWG	Non-Insulated	0.03 in	0.76 mm			0.25 "	15.24 mm	0.6 in	4 Stud	6.35 mm
3M MU18-250DFK	Brass	Butted Seam	Free Hanging (In-Line)	Standard	Female	Crimp	0.032 in	0.81 mm	Tin	6.35 mm	0.25 in	22 AWG	17.5 AWG	Non-Insulated						16.76 mm	0.66 in
3M MU18-187DMX-BOTTLE	Copper, ETP	Butted Seam	Free Hanging (In-Line)	Standard	Male	Crimp	0.02 "	0.51 mm	Tin	4.75 mm	0.187 in	22 AWG	17.5 AWG	Non-Insulated						16.26 mm	0.64 in
3M MU18-8FLX-BOTTLE	Copper, ETP		Free Hanging (In-Line)	Snap, Spring		Crimp			Tin			22 AWG	17.5 AWG	Non-Insulated			8 Stud			17.27 mm	0.68 in			6.35 mm	0.25 "	0.25 in	6.35 mm
3M MU18-10FFBK (BULK)	Copper, ETP	Butted Seam	Free Hanging (In-Line)	Flanged		Crimp			Tin			22 AWG	17.5 AWG	Non-Insulated						16.5 mm	0.65 "	10 Stud		6.35 mm	0.25 "	0.25 in	6.35 mm
3M MU18-187DMK	Copper	Butted Seam	Free Hanging (In-Line)	Standard	Male	Crimp	0.02 "	0.51 mm	Tin	4.75 mm	0.187 in	22 AWG	17.5 AWG	Non-Insulated						16.26 mm	0.64 in
3M MU18-10FBK	Copper	Butted Seam	Free Hanging (In-Line)	Standard		Crimp			Tin			22 AWG	17.5 AWG	Non-Insulated						16.5 mm	0.65 "	10 Stud		6.35 mm	0.25 "	0.25 in	6.35 mm
3M MU18-187DFK	Brass	Butted Seam	Free Hanging (In-Line)	Standard	Female	Crimp	0.02 "	0.51 mm	Tin	4.75 mm	0.187 in	22 AWG	17.5 AWG	Non-Insulated						14.73 mm	0.58 in
