336313-14-0200
ActiveAmphenol RF

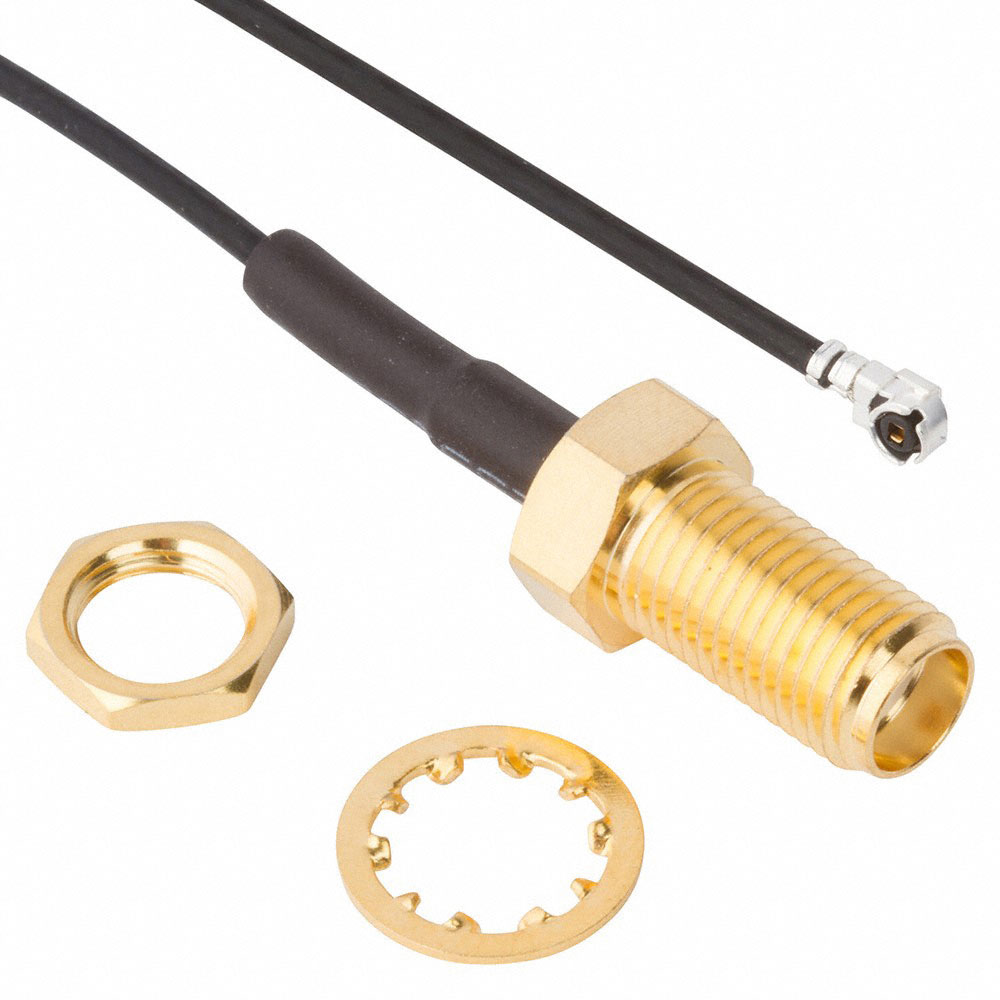

SMA STR BHD JACK TO AMC R/A PLUG USING 1.37 MM CABLE VARIOUS LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
336313-14-0200
ActiveAmphenol RF
SMA STR BHD JACK TO AMC R/A PLUG USING 1.37 MM CABLE VARIOUS LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 336313-14-0200 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | AMC Plug, U.FL (UMCC), Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Frequency - Max [Max] | 6000 MHz |
| Length | 7.874 in |
| Length | 200 mm |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC), AMC to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.36 | |
| 10 | $ 7.56 | |||
| 25 | $ 7.14 | |||
| 50 | $ 6.97 | |||
| 100 | $ 6.62 | |||
| 300 | $ 5.92 | |||
| 500 | $ 5.57 | |||
| 1000 | $ 4.88 | |||
Description
General part information
336313 Series
Cable Assembly Coaxial U.FL (UMCC), AMC to SMA 1.37mm OD Coaxial Cable 7.874" (200.00mm)
