336313-12-0300

Active

Amphenol RF

CBL ASSY AMC-SMA JCK-PLG 11.811"

Deep-Dive with AI

Search across all available documentation for this part.

336313-12-0300

Active

Amphenol RF

CBL ASSY AMC-SMA JCK-PLG 11.811"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	336313-12-0300

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	AMC Plug, U.FL (UMCC), Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Frequency - Max [Max]	6000 MHz
Length [x]	300 mm
Length [x]	11.811 in
Overall Impedance	50 Ohms
Style	U.FL (UMCC), AMC to SMA

336313 Series

Part	1st Connector	Style	1st Connector Mounting Type	Frequency - Max [Max]	2nd Connector Mounting Type	Length [x]	Length [x]	Color	2nd Connector	Overall Impedance	2nd Contact Gender	1st Connector Mounting Feature	Cable Type	1st Contact Gender	Cable Type [diameter]	Length	Length
Amphenol RF 336313-13-0150	SMA Jack	U.FL (UMCC) AMC to SMA	Panel Mount	6000 MHz	Free Hanging (In-Line)	150 mm	5.906 "	Black	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	Female	Bulkhead - Front Side Nut	1.32mm OD Coaxial Cable	Female
Amphenol RF 336313-13-0300	SMA Jack	U.FL (UMCC) AMC to SMA	Panel Mount	6000 MHz	Free Hanging (In-Line)	300 mm	11.811 in	Black	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	Female	Bulkhead - Front Side Nut	1.32mm OD Coaxial Cable	Female
Amphenol RF 336313-13-0250	SMA Jack	U.FL (UMCC) AMC to SMA	Panel Mount	6000 MHz	Free Hanging (In-Line)	250 mm	9.843 "	Black	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	Female	Bulkhead - Front Side Nut	1.32mm OD Coaxial Cable	Female
Amphenol RF 336313-13-0050	SMA Jack	U.FL (UMCC) AMC to SMA	Panel Mount	6000 MHz	Free Hanging (In-Line)	50 mm	1.969 in	Black	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	Female	Bulkhead - Front Side Nut	1.32mm OD Coaxial Cable	Female
Amphenol RF 336313-14-0100	SMA Jack	U.FL (UMCC) AMC to SMA	Panel Mount	6000 MHz	Free Hanging (In-Line)	0.1 m	3.937 in	Black	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	Female	Bulkhead - Front Side Nut		Female	1.37 mm
Amphenol RF 336313-12-0200	SMA Jack	U.FL (UMCC) AMC to SMA	Panel Mount	6000 MHz	Free Hanging (In-Line)			Black	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	Female	Bulkhead - Front Side Nut	1.13mm OD Coaxial Cable	Female		7.874 in	200 mm
Amphenol RF 336313-14-0200	SMA Jack	U.FL (UMCC) AMC to SMA	Panel Mount	6000 MHz	Free Hanging (In-Line)			Black	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	Female	Bulkhead - Front Side Nut		Female	1.37 mm	7.874 in	200 mm
Amphenol RF 336313-14-0150	SMA Jack	U.FL (UMCC) AMC to SMA	Panel Mount	6000 MHz	Free Hanging (In-Line)	150 mm	5.906 "	Black	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	Female	Bulkhead - Front Side Nut		Female	1.37 mm
Amphenol RF 336313-14-0300	SMA Jack	U.FL (UMCC) AMC to SMA	Panel Mount	6000 MHz	Free Hanging (In-Line)	300 mm	11.811 in	Black	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	Female	Bulkhead - Front Side Nut		Female	1.37 mm
Amphenol RF 336313-12-0300	SMA Jack	U.FL (UMCC) AMC to SMA	Panel Mount	6000 MHz	Free Hanging (In-Line)	300 mm	11.811 in	Black	AMC Plug Right Angle U.FL (UMCC)	50 Ohms	Female	Bulkhead - Front Side Nut	1.13mm OD Coaxial Cable	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.71
		10	$ 6.97
		25	$ 6.59
		50	$ 6.42
		100	$ 6.10
		300	$ 5.46
		500	$ 5.14
		1000	$ 4.50

Description

General part information

336313 Series

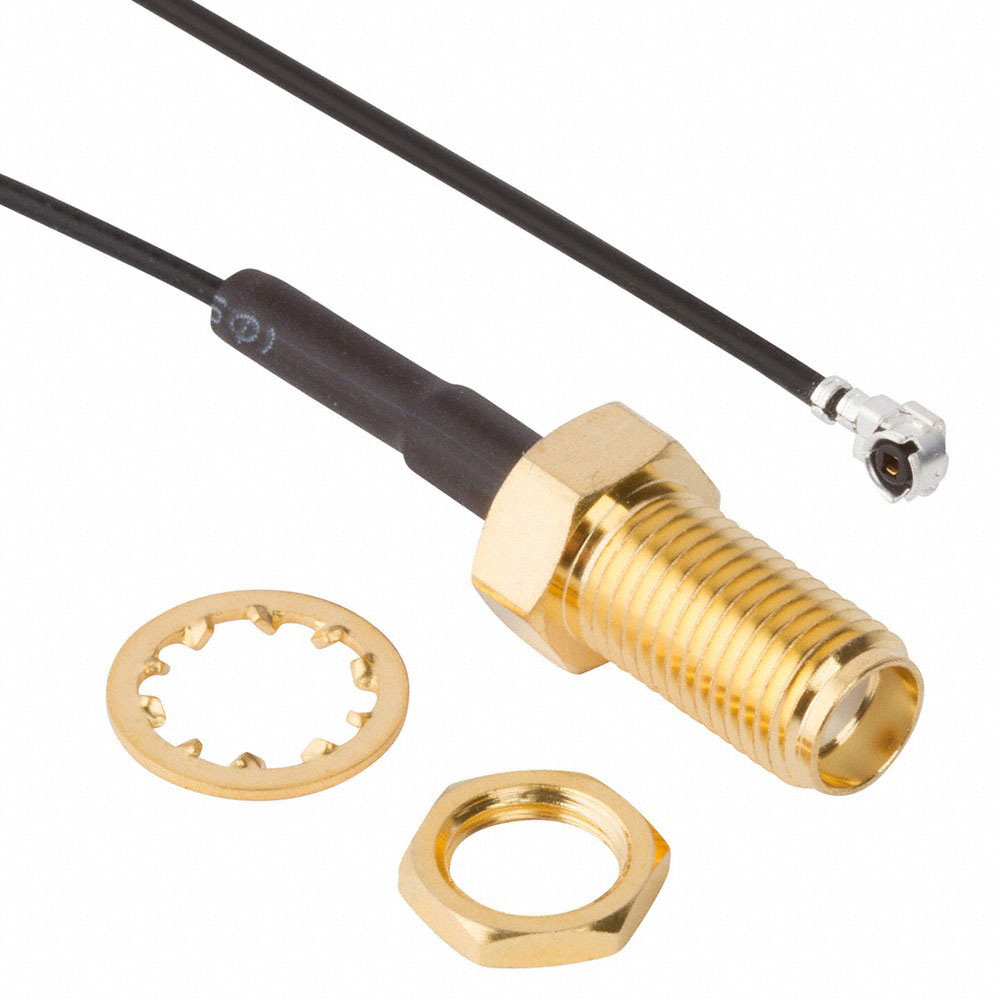

Cable Assembly Coaxial U.FL (UMCC), AMC to SMA 1.13mm OD Coaxial Cable 11.811" (300.00mm)
