CD54HCT393F3A

Active

Texas Instruments

HIGH SPEED CMOS LOGIC DUAL 4-STAGE BINARY COUNTER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LOGIC Pocket Data Book (Rev. B)+11

CD54HCT393F3A

Active

Texas Instruments

HIGH SPEED CMOS LOGIC DUAL 4-STAGE BINARY COUNTER

Deep-Dive with AI

DocumentsDatasheet LOGIC Pocket Data Book (Rev. B)+11

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CD54HCT393F3A

Count Rate	27 MHz
Direction	Up
Logic Type	Binary Counter
Mounting Type	Through Hole
Number of Bits per Element	4
Number of Elements [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Package / Case	0.3 in, 7.62 mm

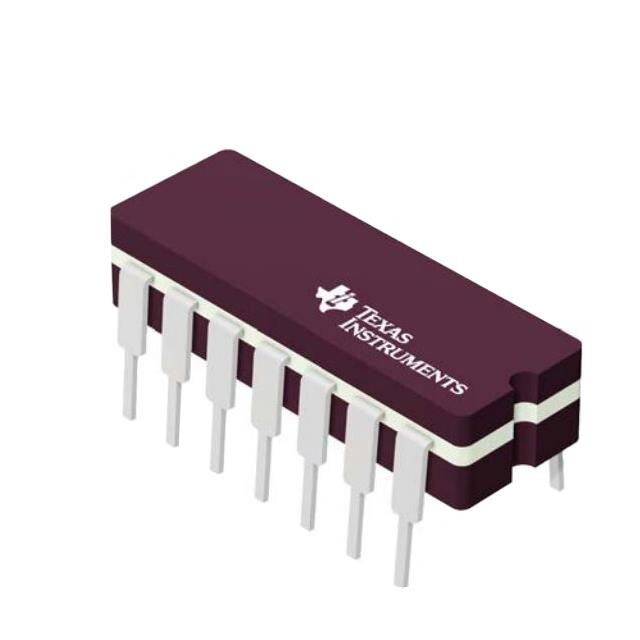

Package / Case	14-CDIP
Reset	Asynchronous
Supplier Device Package	14-CDIP
Trigger Type	Negative Edge
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Texas Instruments	TUBE	1	$ 35.55
		100	$ 31.06
		250	$ 23.95
		1000	$ 21.42

CD54HCT393 Series

High Speed CMOS Logic Dual 4-Stage Binary Counter

Part	Number of Bits per Element	Supplier Device Package	Package / Case	Package / Case	Direction	Number of Elements [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Count Rate	Logic Type	Trigger Type	Mounting Type	Reset
Texas Instruments CD54HCT393F3A Counter IC Binary Counter 2 Element 4 Bit Negative Edge 14-CDIP	4	14-CDIP	0.3 in, 7.62 mm	14-CDIP	Up	2	5.5 V	4.5 V	-55 C	125 °C	27 MHz	Binary Counter	Negative Edge	Through Hole	Asynchronous

Description

General part information

CD54HCT393 Series

High Speed CMOS Logic Dual 4-Stage Binary Counter

Documents

Technical documentation and resources

Datasheet

LOGIC Pocket Data Book (Rev. B)

User guide

Understanding and Interpreting Standard-Logic Data Sheets (Rev. C)

Application note

CDx4HC393, CDx4HCT393 High-Speed CMOS Logic Dual 4-Stage Binary Counter datasheet (Rev. F)

Data sheet
