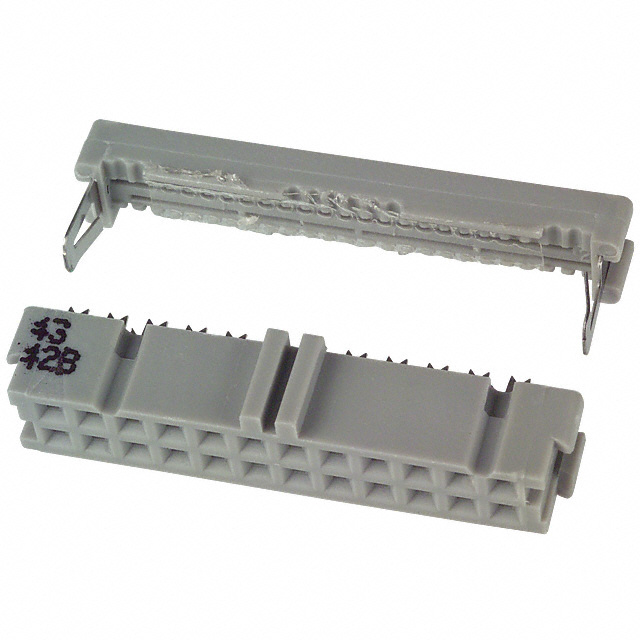

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 24 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

3626-7600

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 24 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3626-7600

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)
Number of Positions	24
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

3626 Series

Part	Pitch [x]	Pitch [x]	Connector Type	Wire Type	Color	Row Spacing [x]	Row Spacing	Cable Termination	Mounting Type	Number of Rows	Number of Positions	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3626-7000	2.54 mm	0.1 in	Receptacle	Ribbon Cable	Gray	0.1 in	2.54 mm	IDC	Free Hanging (In-Line)	2	24	Female Socket	Gold	0.76 Ám	30 Áin
3M (TC) 3626-6024	2.54 mm	0.1 in	Receptacle	Ribbon Cable	Gray	0.1 in	2.54 mm	IDC	Free Hanging (In-Line)	2	24	Female Socket	Gold	0.76 Ám	30 Áin	Feed Through Strain Relief
3M (TC) 3626-6600	2.54 mm	0.1 in	Receptacle	Ribbon Cable	Gray	0.1 in	2.54 mm	IDC	Free Hanging (In-Line)	2	24	Female Socket	Gold	0.76 Ám	30 Áin	Feed Through Polarizing Key	26 AWG	28 AWG	Solid Stranded
3M (TC) 3626-7600	2.54 mm	0.1 in	Receptacle	Ribbon Cable	Gray	0.1 in	2.54 mm	IDC	Free Hanging (In-Line)	2	24	Female Socket	Gold	0.76 Ám	30 Áin
3M (TC) 3626-6000	2.54 mm	0.1 in	Receptacle	Ribbon Cable	Gray	0.1 in	2.54 mm	IDC	Free Hanging (In-Line)	2	24	Female Socket	Gold	0.76 Ám	30 Áin	Feed Through

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.07
		10	$ 5.51
		25	$ 5.22
		50	$ 5.10
		100	$ 4.86
		300	$ 4.25
		600	$ 4.13
		1200	$ 3.52
		2700	$ 3.28
Newark	Each	250	$ 4.16
		500	$ 4.04
		1000	$ 3.43

Description

General part information

3626 Series

The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.
