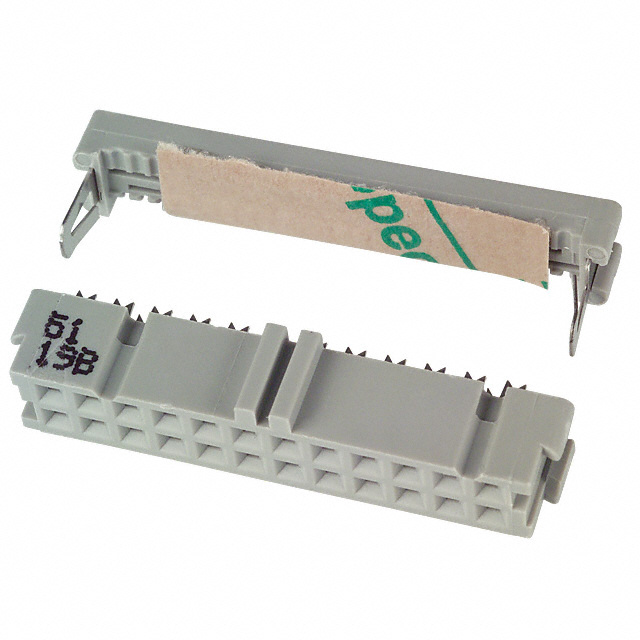

3626-6600

Active

3M (TC)

CONN RCPT 24P IDC 26-28AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 24P IDC 26-28AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Connector Type	Wire Type	Color	Row Spacing [x]	Row Spacing	Cable Termination	Mounting Type	Number of Rows	Number of Positions	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3626-7000	2.54 mm	0.1 in	Receptacle	Ribbon Cable	Gray	0.1 in	2.54 mm	IDC	Free Hanging (In-Line)	2	24	Female Socket	Gold	0.76 Ám	30 Áin
3M (TC) 3626-6024	2.54 mm	0.1 in	Receptacle	Ribbon Cable	Gray	0.1 in	2.54 mm	IDC	Free Hanging (In-Line)	2	24	Female Socket	Gold	0.76 Ám	30 Áin	Feed Through Strain Relief
3M (TC) 3626-6600	2.54 mm	0.1 in	Receptacle	Ribbon Cable	Gray	0.1 in	2.54 mm	IDC	Free Hanging (In-Line)	2	24	Female Socket	Gold	0.76 Ám	30 Áin	Feed Through Polarizing Key	26 AWG	28 AWG	Solid Stranded
3M (TC) 3626-7600	2.54 mm	0.1 in	Receptacle	Ribbon Cable	Gray	0.1 in	2.54 mm	IDC	Free Hanging (In-Line)	2	24	Female Socket	Gold	0.76 Ám	30 Áin
3M (TC) 3626-6000	2.54 mm	0.1 in	Receptacle	Ribbon Cable	Gray	0.1 in	2.54 mm	IDC	Free Hanging (In-Line)	2	24	Female Socket	Gold	0.76 Ám	30 Áin	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG, Stranded or Solid
