A8A-223-2

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

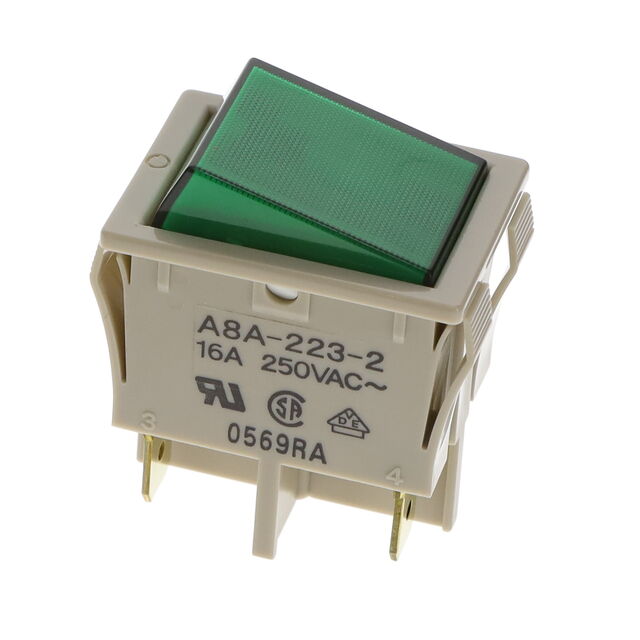

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A8A-223-2	A8A-223 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flat - Illuminated	Flat - Illuminated
Approval Agency	CSA, EN, UL	CSA, EN, UL
Circuit	DPST	DPST
Color - Actuator/Cap	Green	Green
Current Rating (Amps)	16 A	16 A
Electrical Life	20000 Steps	20000 Steps
Illumination Type, Color	Green, Neon	Green, Neon
Illumination Voltage (Nominal)	220 VAC/DC	220 VAC/DC
Ingress Protection	IP00	IP00
Mechanical Life	40000 Cycles	40000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [x]	30 mm	30 mm
Panel Cutout Dimensions [y]	22 mm	22 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER DPST 16A 125V

Part	Actuator Marking	Mechanical Life	Ingress Protection	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Mounting Type	Illumination Type, Color	Approval Agency	Actuator Type	Voltage Rating - AC	Electrical Life	Termination Style
Omron Electronics Inc-EMC Div A8A-223-1	No Marking	40000 Cycles	IP00	16 A	DPST	220 VAC/DC	50 °C	-25 °C	Green	30 mm	22 mm	On-Off	Panel Mount, Snap-In	Green, Neon	CSA, EN, UL	Flat - Illuminated	125 V	20000 Steps	Quick Connect - 0.250" (6.3mm)
Omron Electronics Inc-EMC Div A8A-223-1A	No Marking	40000 Cycles	IP00	16 A	DPST	220 VAC/DC	50 °C	-25 °C	Green	30 mm	22 mm	On-Off	Panel Mount, Snap-In	Green, Neon	CSA, EN, UL	Flat - Illuminated	125 V	20000 Steps	Quick Connect - 0.250" (6.3mm)
Omron Electronics Inc-EMC Div A8A-223-2	No Marking	40000 Cycles	IP00	16 A	DPST	220 VAC/DC	50 °C	-25 °C	Green	30 mm	22 mm	On-Off	Panel Mount, Snap-In	Green, Neon	CSA, EN, UL	Flat - Illuminated	125 V	20000 Steps	Quick Connect - 0.250" (6.3mm)
