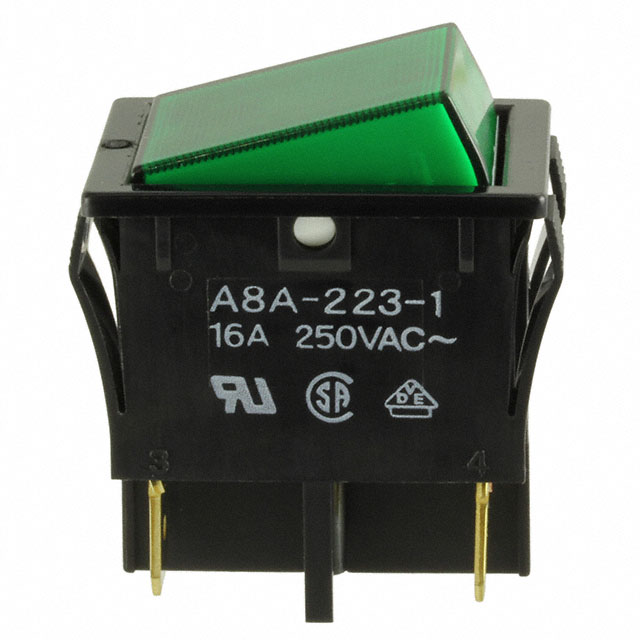

A8A-223-1

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A8A-223-1	A8A-223 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flat - Illuminated	Flat - Illuminated
Approval Agency	CSA, EN, UL	CSA, EN, UL
Circuit	DPST	DPST
Color - Actuator/Cap	Green	Green
Current Rating (Amps)	16 A	16 A
Electrical Life	20000 Steps	20000 Steps
Illumination Type, Color	Green, Neon	Green, Neon
Illumination Voltage (Nominal)	220 VAC/DC	220 VAC/DC
Ingress Protection	IP00	IP00
Mechanical Life	40000 Cycles	40000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [x]	30 mm	30 mm
Panel Cutout Dimensions [y]	22 mm	22 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V	125 V

SWITCH ROCKER DPST 16A 125V

Part	Actuator Marking	Mechanical Life	Ingress Protection	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Mounting Type	Illumination Type, Color	Approval Agency	Actuator Type	Voltage Rating - AC	Electrical Life	Termination Style
Omron Electronics Inc-EMC Div A8A-223-1	No Marking	40000 Cycles	IP00	16 A	DPST	220 VAC/DC	50 °C	-25 °C	Green	30 mm	22 mm	On-Off	Panel Mount, Snap-In	Green, Neon	CSA, EN, UL	Flat - Illuminated	125 V	20000 Steps	Quick Connect - 0.250" (6.3mm)
Omron Electronics Inc-EMC Div A8A-223-1A	No Marking	40000 Cycles	IP00	16 A	DPST	220 VAC/DC	50 °C	-25 °C	Green	30 mm	22 mm	On-Off	Panel Mount, Snap-In	Green, Neon	CSA, EN, UL	Flat - Illuminated	125 V	20000 Steps	Quick Connect - 0.250" (6.3mm)
Omron Electronics Inc-EMC Div A8A-223-2	No Marking	40000 Cycles	IP00	16 A	DPST	220 VAC/DC	50 °C	-25 °C	Green	30 mm	22 mm	On-Off	Panel Mount, Snap-In	Green, Neon	CSA, EN, UL	Flat - Illuminated	125 V	20000 Steps	Quick Connect - 0.250" (6.3mm)
