AIDK12S65C5ATMA1

Active

Infineon Technologies

THE 650V COOLSIC SCHOTTKY DIODES OFFER BENCHMARK SWITCHING BEHAVIOR WITH SIGNIFICANTLY BETTER PERFORMANCE VERSUS SI DEVICES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

AIDK12S65C5ATMA1

Active

Infineon Technologies

THE 650V COOLSIC SCHOTTKY DIODES OFFER BENCHMARK SWITCHING BEHAVIOR WITH SIGNIFICANTLY BETTER PERFORMANCE VERSUS SI DEVICES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AIDK12S65C5ATMA1

Capacitance @ Vr, F	363 pF
Current - Average Rectified (Io)	12 A
Current - Reverse Leakage @ Vr	70 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-40 °C

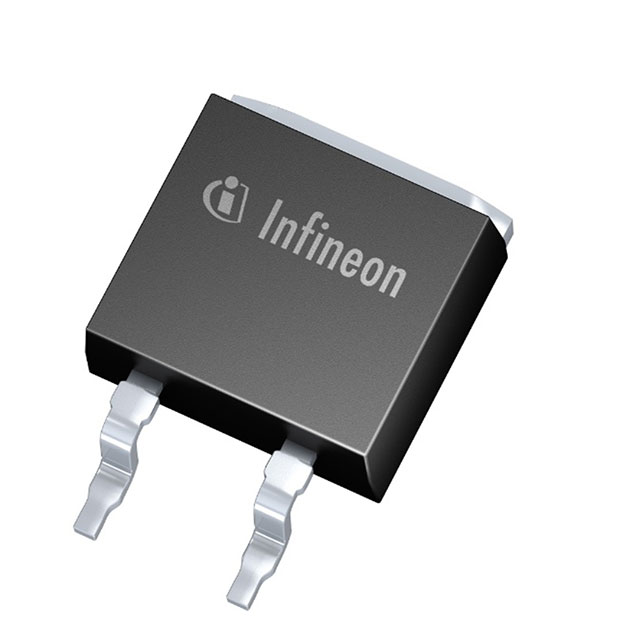

Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Qualification	AEC-Q101
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	PG-TO263-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V

AIDK12 Series

Part	Technology	Capacitance @ Vr, F	Supplier Device Package	Mounting Type	Grade	Qualification	Package / Case	Current - Average Rectified (Io)	Speed	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]
Infineon Technologies AIDK12S65C5ATMA1	SiC (Silicon Carbide) Schottky	363 pF	PG-TO263-2	Surface Mount	Automotive	AEC-Q101	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	12 A	No Recovery Time	0 ns	650 V	70 µA	-40 °C	175 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.74
		10	$ 4.82
		100	$ 3.90
		500	$ 3.47
	Digi-Reel®	1	$ 5.74
		10	$ 4.82
		100	$ 3.90
		500	$ 3.47
	Tape & Reel (TR)	1000	$ 2.68
Newark	Each (Supplied on Cut Tape)	1	$ 5.80
		10	$ 4.20
		25	$ 3.88
		50	$ 3.56
		100	$ 3.23
		250	$ 3.22
		500	$ 2.83

Description

General part information

AIDK12 Series

Thanks to a compact design and a technology based on thin wafers, this family of products shows improved efficiency over all load conditions resulting from both its thermalcharacteristics and low figure of merit (Qc x Vf). This product family has been designed to complement Infineon’s IGBT and CoolMOS™ portfolio. This ensures meeting the most stringent application requirements inthe 650V voltage class.
