M80-6913498

Obsolete

Harwin Inc.

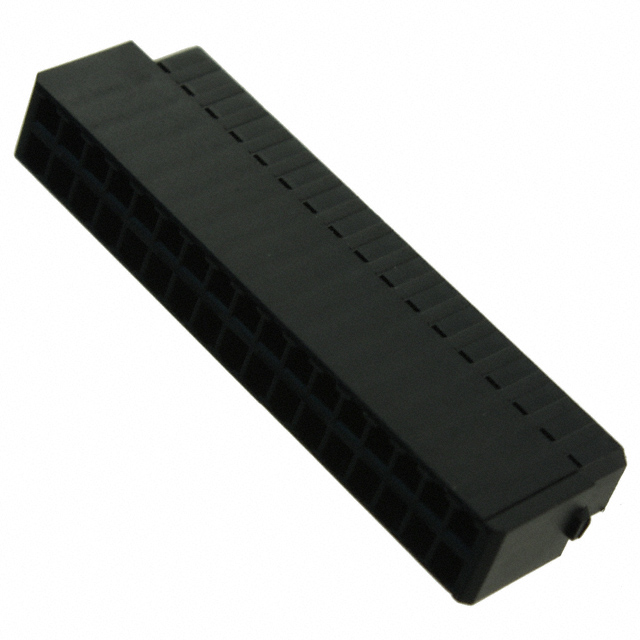

CONN RCPT HSG 34POS 2.00MM

Search across all available documentation for this part.

Obsolete

Harwin Inc.

CONN RCPT HSG 34POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	M80-6913498

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Number of Positions	Number of Rows	Fastening Type	Connector Type	Mounting Type	Note	Contact Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Termination
Harwin Inc. M80-6911098	0.079 in	2 mm	2 mm	0.079 in	10	2	Latch Lock	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Female Socket	Black	-55 °C	125 °C	Glass Filled Nylon 4/6 Polyamide (PA46)	Crimp
Harwin Inc. M80-6910698	0.079 in	2 mm	2 mm	0.079 in	6	2	Latch Lock	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Female Socket	Black	-55 °C	125 °C	Glass Filled Nylon 4/6 Polyamide (PA46)	Crimp
Harwin Inc. M80-6910898	0.079 in	2 mm	2 mm	0.079 in	8	2	Latch Lock	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Female Socket	Black	-55 °C	125 °C	Glass Filled Nylon 4/6 Polyamide (PA46)	Crimp
Harwin Inc. M80-6913498	0.079 in	2 mm	2 mm	0.079 in	34	2	Latch Lock	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Female Socket	Black	-55 °C	125 °C	Glass Filled Nylon 4/6 Polyamide (PA46)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

34 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
