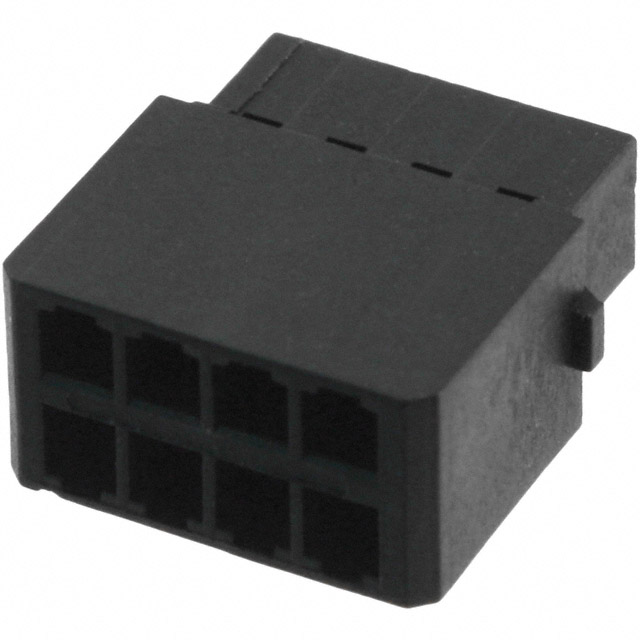

M80-6910898

Obsolete

Harwin Inc.

BOARD CONNECTOR, 8 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, PLUG, LEAD FREE

Search across all available documentation for this part.

Obsolete

Harwin Inc.

BOARD CONNECTOR, 8 CONTACT(S), 2 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, PLUG, LEAD FREE

Technical Specifications

Parameters and characteristics for this part

Specification	M80-6910898

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in

Part	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Number of Positions	Number of Rows	Fastening Type	Connector Type	Mounting Type	Note	Contact Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Termination
Harwin Inc. M80-6911098	0.079 in	2 mm	2 mm	0.079 in	10	2	Latch Lock	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Female Socket	Black	-55 °C	125 °C	Glass Filled Nylon 4/6 Polyamide (PA46)	Crimp
Harwin Inc. M80-6910698	0.079 in	2 mm	2 mm	0.079 in	6	2	Latch Lock	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Female Socket	Black	-55 °C	125 °C	Glass Filled Nylon 4/6 Polyamide (PA46)	Crimp
Harwin Inc. M80-6910898	0.079 in	2 mm	2 mm	0.079 in	8	2	Latch Lock	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Female Socket	Black	-55 °C	125 °C	Glass Filled Nylon 4/6 Polyamide (PA46)	Crimp
Harwin Inc. M80-6913498	0.079 in	2 mm	2 mm	0.079 in	34	2	Latch Lock	Receptacle	Free Hanging (In-Line)	Contacts Not Included	Female Socket	Black	-55 °C	125 °C	Glass Filled Nylon 4/6 Polyamide (PA46)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
